Engine Mount Brace Reinforcement

Engine Mount Brace Reinforcement

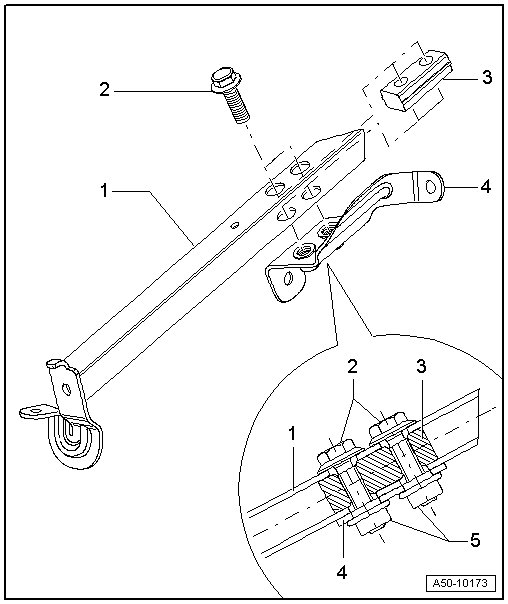

1 Engine mount brace

• If brace must be removed from bracket, remove bolts - 2 -.

When installing, reinforcement - 3 - must be slid into brace - 1 -.

2 Bolt

• 23 Nm

• When tightening to torque, counterhold at nut - 5 - with open end wrench.

3 Brace reinforcement

4 Bracket

5 Nut
