Coupe

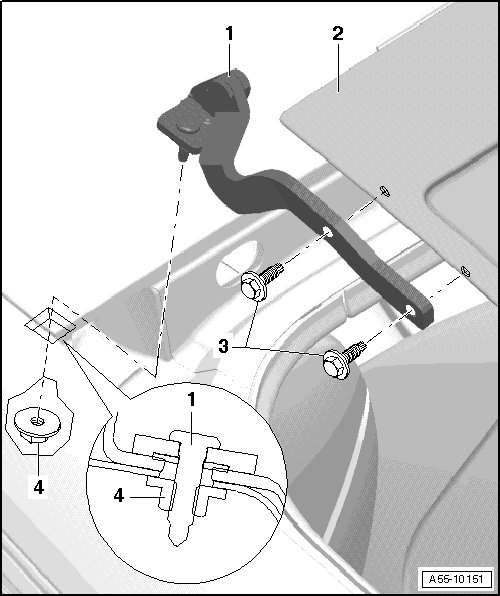

Rear Lid Hinge






1 Rear lid hinge

• Only remove bolts - 3 - to remove lid.

• Loosen headline in area of nut - 4 -.

• To remove, remove cover => [ Removing ] Rear Lid Hinge Cover and nut - 4 -.

2 Hood

3 Bolt

• 21 Nm

4 Nut

• 21 Nm
