Release Cable Coupling

Release Cable Coupling

Release Cable Coupling

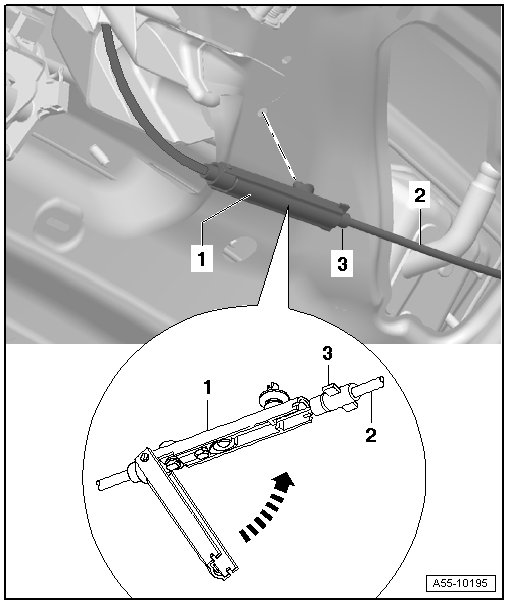

1 Release cable coupling

• Coupling is clipped into inner part of lid.

• Remove retainer sideways and fold coupling up.

• When installing, retainer must be slid back into coupling.

2 Cable

• Route cable ball in coupling, close lid and slide in retainer.

3 Retainer
