Hood - TT RS, Hood Control Cable, Control Cable Operating Lever Assembly Overview

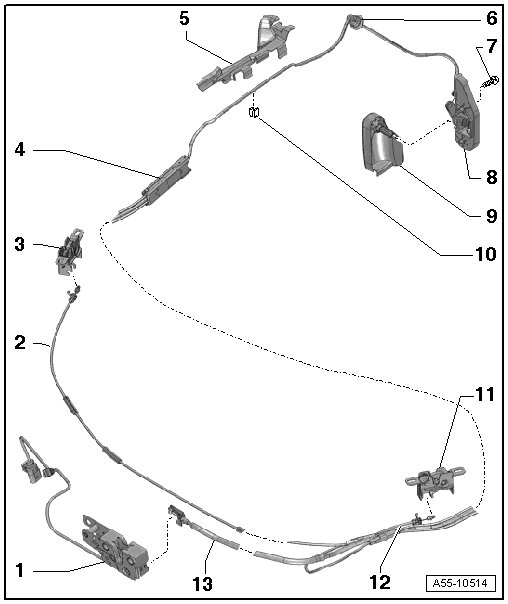

Hood Control Cable, Control Cable Operating Lever Assembly overview






1 Front hood Lock

2 Right cable

• For the right lid lock

• Removing and Installing, refer to => [ Right Hood Lock Control Cable ] Right Hood Lock Control Cable

3 Right hood lock

4 Mount

• For the cables to the left and right lid locks

• Removing and Installing, refer to => [ Hood Lock Control Cable Mount ] Hood Lock Control Cable Mount

5 Cover

• For the cable

6 Grommet

• For the seal to the passenger compartment

7 Bolt

• 10 Nm

8 Operating lever mounting bracket

• Removing and Installing, refer to => [ Release Lever Mounting Bracket ] Release Lever Mounting Bracket

9 Hood release lever

10 Retaining clip

• For mount with control cable

11 Left hood lock

• Removing and Installing, refer to => [ Left and Right Hood Lock ] Left and Right Hood Lock

12 Left cable

• For the left lid lock

• Removing and Installing, refer to => [ Left Hood Lock Control Cable ] Left Hood Lock Control Cable

• Adjusting, refer to => [ Hood Lock Cables, Adjusting ] Hood Lock Cables, Adjusting

13 Cable

• For front lid lock

• Removing and Installing, refer to => [ Center Hood Lock Control Cable ] Center Hood Lock Control Cable
