Fuel Filler Door, Installation Position

Fuel Filler Door, Installation Position

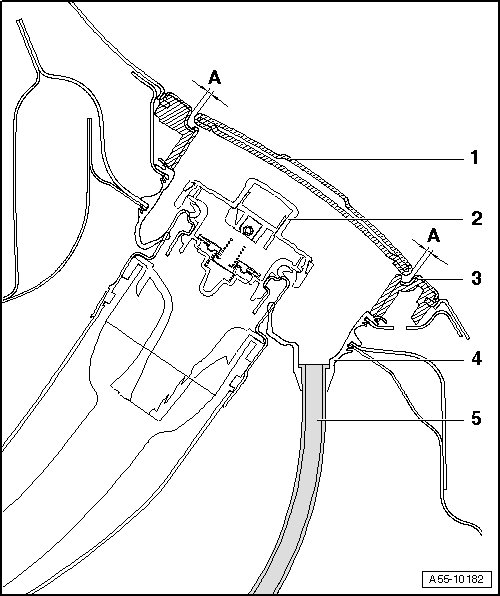

1 Fuel Filler Door Cover

• Adjust distance - A - evenly to side panel.

2 Tank cap

3 Fuel filler door

4 Fuel filler door cup

• Slide all around onto body flange as shown.

5 Drain hose
