Impact Member, Shock Absorber and Guide Piece Assembly Overview

Impact Member, Shock Absorber and Guide Piece Assembly Overview

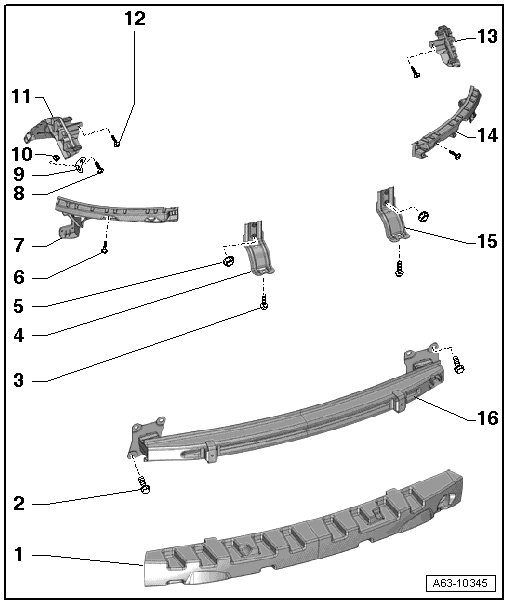

1 Impact absorber

• Removing and Installing, refer to => [ Impact Absorber ] Impact Absorber

2 Bolt

• Quantity: 7

• 23 Nm

3 Bolt

• Quantity: 2

• For the correct tightening specifications, refer to => [ (Item 10) Bolt ] Rear Bumper Assembly Overview

4 Left holder for bumper

• Removing and Installing, refer to => [ Rear Bumper Bracket ] Rear Bumper Bracket

5 Nut

• Quantity: 2

• 4 Nm

6 Bolt

• Quantity: 6

• Tightening Specifications and Sequence => [ Tightening Torque and Sequence for Inner Guide Piece ]

7 Left inner guide piece

• Removing and Installing, refer to => [ Inner Guide Piece ] Inner Guide Piece

8 Bolt

• Quantity: 2

• 2 Nm

9 Guide piece holder

10 Nut

• Quantity: 2

• Tightening Specifications and Sequence => [ Tightening Torque and Sequence for Guide Piece ]

11 Left guide piece

• Removing and Installing, refer to => [ Guide Piece ] Guide Piece

12 Bolt

• Quantity: 6

• Tightening Specifications and Sequence => [ Tightening Torque and Sequence for Guide Piece ]

13 Right guide piece

• Removing and Installing, refer to => [ Guide Piece ] Guide Piece

14 Right inner guide piece

• Removing and Installing, refer to => [ Inner Guide Piece ] Inner Guide Piece

15 Right holder for bumper

• Removing and Installing, refer to => [ Rear Bumper Bracket ] Rear Bumper Bracket

16 Side impact bar

• Observe country-specific versions.

• Removing and Installing, refer to => [ Impact Member ] Impact Member

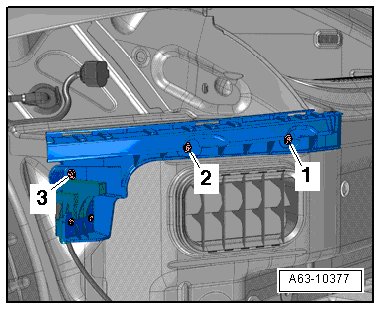

Tightening Torque and Sequence for Inner Guide Piece





- Tighten the bolts in a - 1 through 3 - sequence to 2.5 Nm.

Tightening Torque and Sequence for Guide Piece





- Tighten the screws and nuts in the following sequence: - 1 through 4 -.

1. Bolt - 2.0 Nm

2. Bolt - 2.0 Nm

3. Bolt - 2.5 Nm

4. Nut - 6.5 Nm
