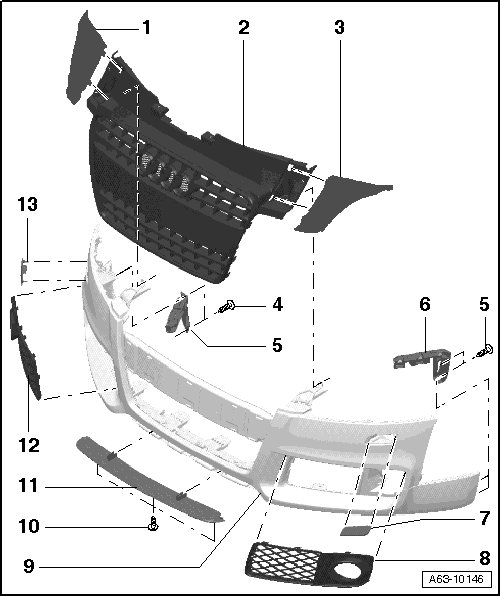

Front Bumper Assembly Overview

Front Bumper Assembly Overview






1 Upper right bumper cover

• Removing => [ Removing ] Upper Bumper Covers.

2 Radiator Grille

• Removing and installing, refer to=> [ Radiator Grille ] Radiator Grille - Audi TT.

3 Upper left bumper cover

• Removed.

4 Bolt

• 1.5 Nm

5 Right guide piece

• Removing and installing, refer to => [ Removing ] Bumper Guide Piece

6 Left guide piece

7 Headlamp washer system cover

8 Air grille

• Removing=> [ Removing ] Air Grille

9 Bumper

10 Bolt

• 2 Nm

11 Spoiler

• Special equipment

12 Air grille

13 Headlamp washer system cover
