Bumper Guide Piece







Bumper Guide Piece

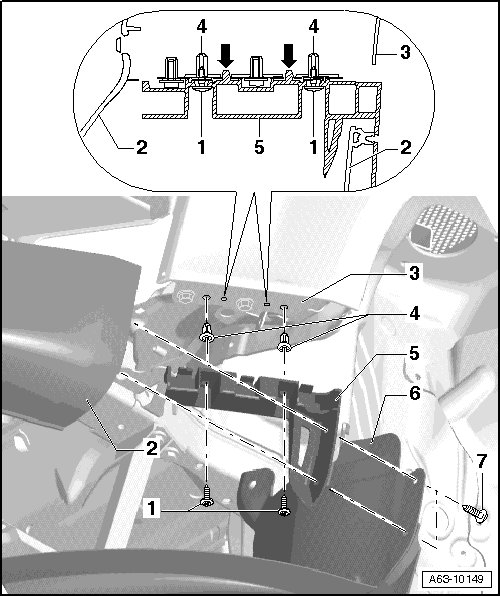

Removing






1 Bolt

• 2.5 Nm.

2 Bumper

• Removed.

3 Fender

4 Clip

5 Guide piece

6 Wheel housing liner

7 Bolt

• 1.5 Nm
