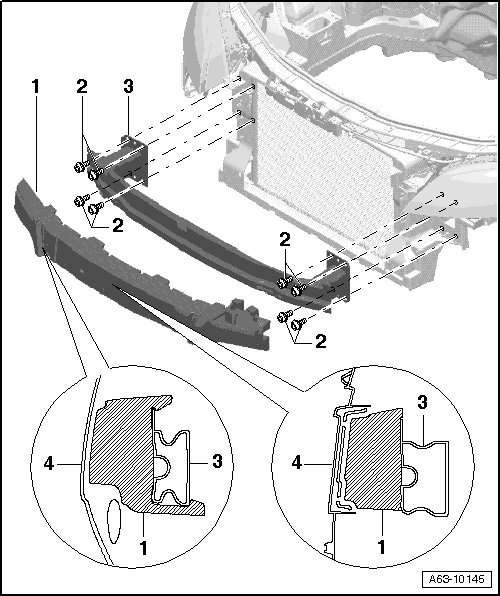

Impact Member and Impact Absorber Assembly Overview

Impact Member and Impact Absorber Assembly Overview






1 Impact absorber

• Removing and Installing, refer to => [ Impact Absorber ] Impact Absorber

2 Bolt

• 30 Nm

3 Side impact bar

• Removing and Installing, refer to => [ Impact Member ] Impact Member

4 Bumper
