Trailer Hitch Socket - Version 3

Trailer Hitch Socket - Version 3

Removal






- Fold out the trailer hitch. Refer to the vehicle Owner's Manual.

- Switch off the ignition and remove the ignition key.

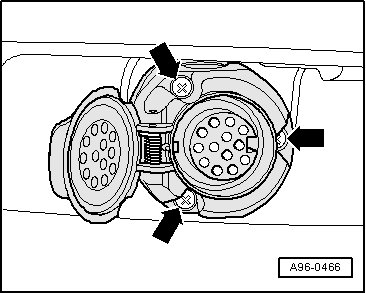

- Remove the bolts - arrows -.

- Remove the socket from the retaining plate.

- Remove the rubber cover from the socket.

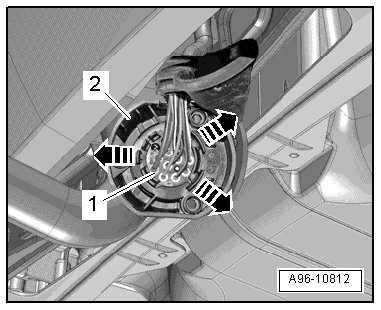

- Release the retaining clips - arrows - and press multiple connector - 1 - out of socket - 1 -.

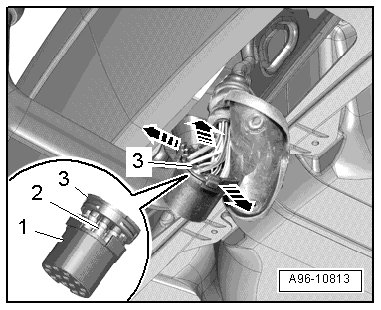

- Release the retaining clips - arrows - and remove retainer - 2 - from multiple connector - 3 -.






• Carefully remove the retainer so that contacts - 2 - of the multiple connector are not disconnected from the wiring harness.

Installation






Install in reverse order of removal. Note the following:

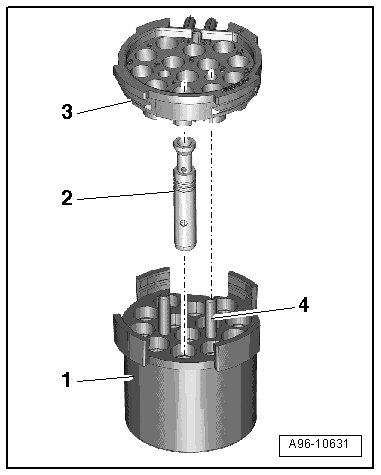

- The retainer - 1 - can be pushed onto multiple connector - 3 - in only one position.

• Guide pins - 4 - can be inserted into the retainer in only one position. Contacts - 2 - must be inserted in the retainer for this purpose.

- Insert the retainer into the multiple connector until it engages audibly.
