Left Rear Treble Speaker

Left Rear Treble Speaker

Removal and installation of left rear treble speaker and right rear treble speaker is identical.

The speakers are clipped into the side trim.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove side trim.

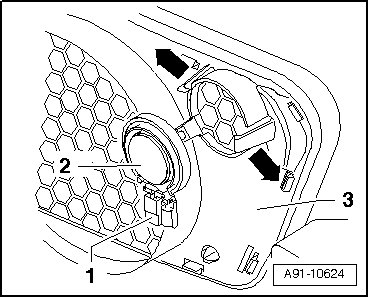

- Disconnect electrical connector - 1 - on eft rear treble speaker - 2 -.





- Release retaining clips - arrows - and remove left rear treble speaker - 2 - from side trim - 3 -.

Installing

- Install in reverse order.
