Radio Preparation

Radio Preparation

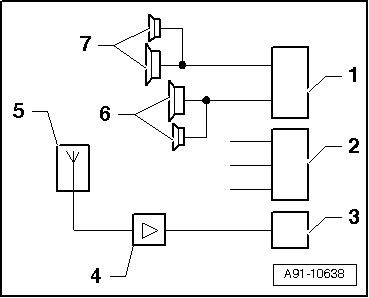

1 Speaker connector (T8d) brown
2 Voltage supply connector (T8c) black
3 Antenna connection (AM/FM1) for the radio
4 Antenna amplifier on upper right side of rear lid (Coupe)
Antenna amplifier left rear mast antenna base (Roadster)
5 Rear window antenna 1 AM/FM1 (Coupe)
Antenna (AM/FM1) mast antenna (Roadster)
6 left front speaker
7 right front speaker
