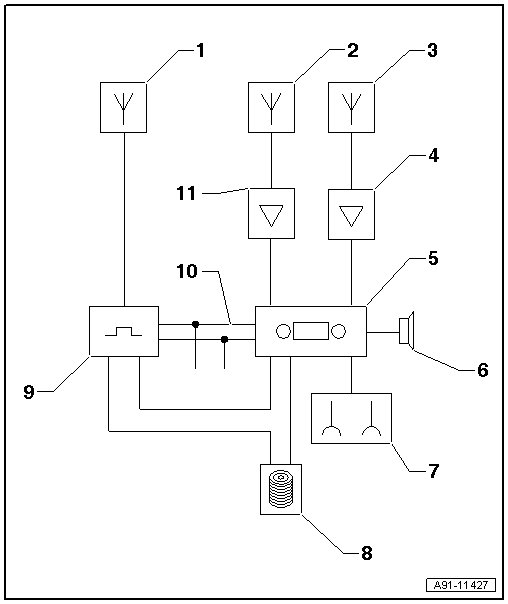

Roadster Radio System, Overview
Roadster Radio System, Overview
1 Satellite Antenna (R170) (Sat) On Rear Lid
2 Radio Antenna 2 (R93) (FM2) Behind Right Side Of Rear Lid
3 Antenna (R11) (AM/FM1) Left Rear Mast Antenna
4 Antenna Amplifier (R24) Left Rear Mast Antenna Base
5 Radio (R) In Upper Center Console
6 Sound Systems
7 External Audio Source Connection (R199) In The Center Console Storage Compartment
8 CD Changer (R41)/iPod Baseplate (R192) Inside The Glove Compartment
9 Satellite radio (R146) Inside The Luggage Compartment On The Left Side Under The Luggage Compartment Floor Covering
10 CAN-BUS (Infotainment)
11 Antenna Amplifier 2 (R111) Behind Right Side Of Rear Lid
