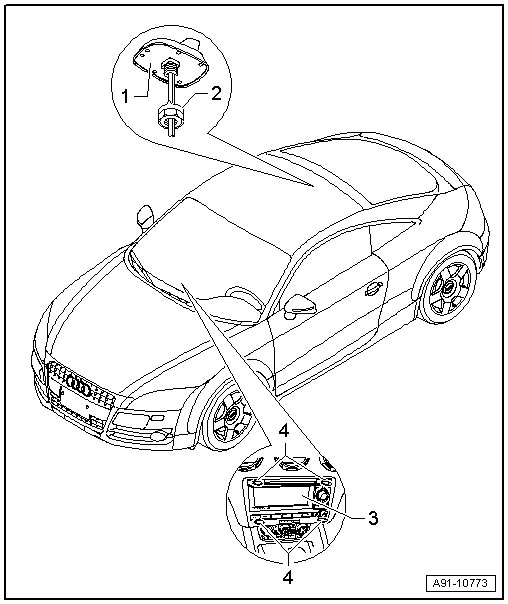

Coupe, Assembly Overview







Coupe, Assembly Overview






1 Radio, Telephone, Navigation System Antenna (R52)

2 Nut

• 6 Nm

3 Radio/Navigation Display Control Module (J503)

4 Radio Removal Tool (T10057)
