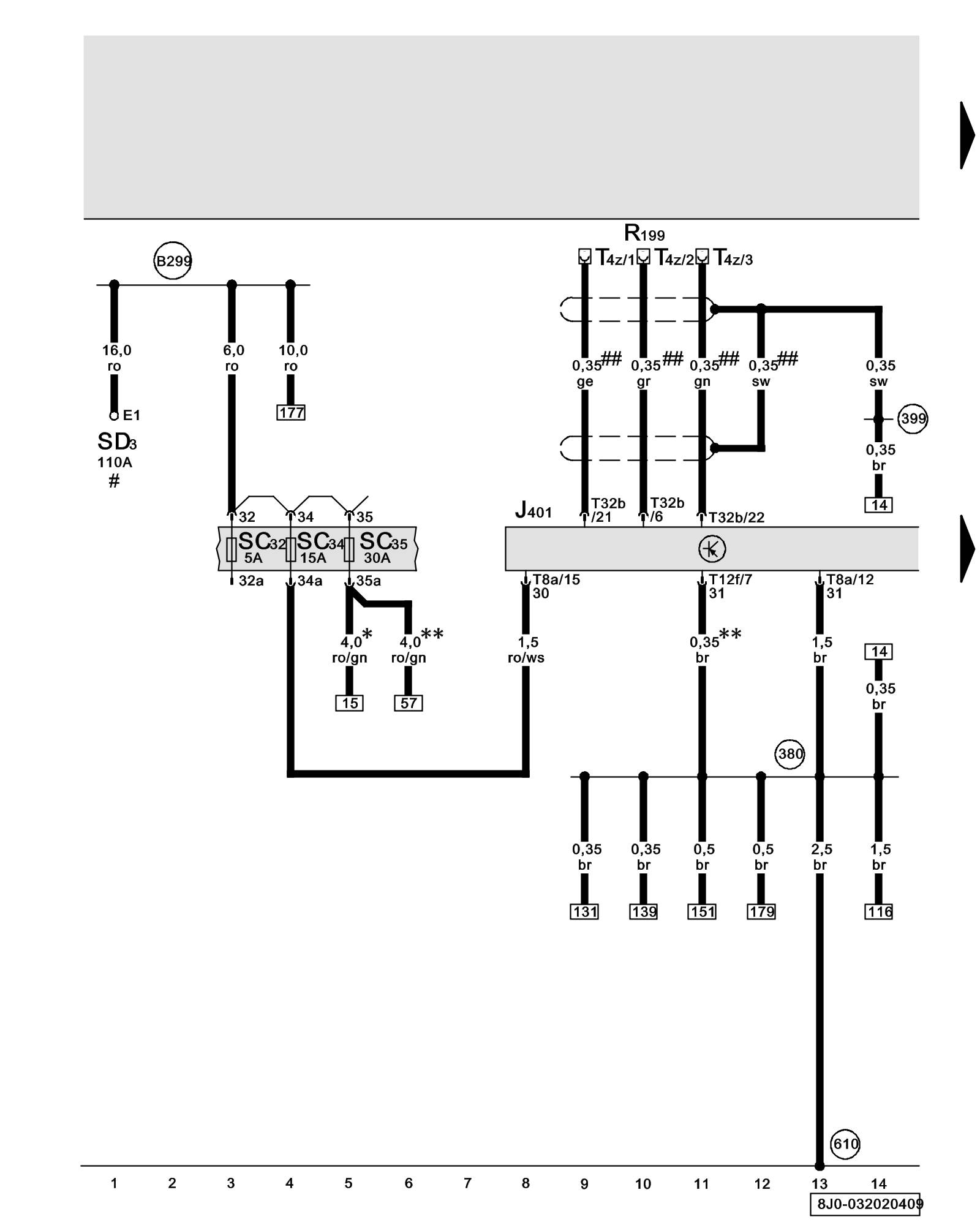

Diagram 32/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Navigation System Control Module with CD Drive, External Audio Source Connector (AUX-IN), Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J401 - Navigation System Control Module with CD Drive Instrument Panel Wiring Harness Routing

R199 - External Audio Source Connector

SC32 - Fuse 32 (on fuse panel C)

SC34 - Fuse 34 (on fuse panel C)

SC35 - Fuse 35 (on fuse panel C)

SD3 - Fuse 3 (on fuse panel D) Fuses (SD) on Main Fuse Carrier

T4z - 4-Pin Connector, black, AUX-IN-socket, in center console

T8a - 8-Pin Connector, black, radio connector D

T12f - 12-Pin Connector, blue, radio connector B

T32b - 32-Pin Connector (Connector E), on navigation system control module with CD drive

(380) - Ground Connection 15 (in main wiring harness)

(399) - Ground Connection 34 (in main wiring harness)

(610) - Ground Connection (Audio) (under center console, front)

(B299) - Plus Connection 3 (30) (in main wiring harness)

* - Models with radio standard sound system (9VD)

** - Models with radio sound system BOSE (8RY)

# - Main fuse panel, in right rear luggage compartment on battery

## - Models with external audio source connector, AUX-IN-socket

Next Diagram 32/3 (Tracks 15-28)
