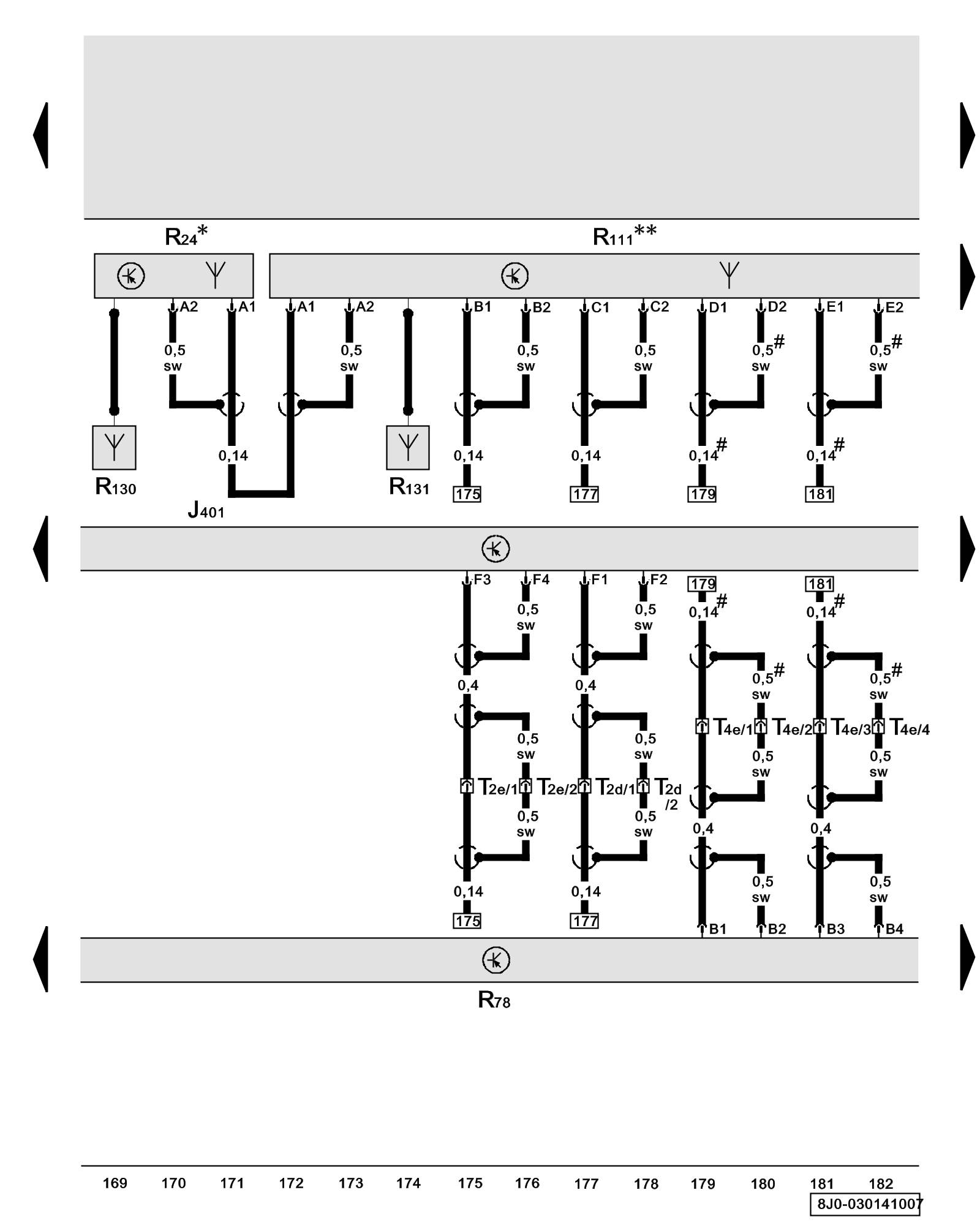

Diagram 30/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Coupe, Navigation System Control Module with CD Drive, TV Tuner, Antenna Amplifier





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J401 - Navigation System Control Module with CD Drive Instrument Panel Wiring Harness Routing

R24 - Antenna Amplifier Rear Lid/ Roof Routing

R78 - TV Tuner Component Locations

R111 - Antenna Amplifier 2 Rear Lid/ Roof Routing

R130 - Rear Window Antenna 1

R131 - Rear Window Antenna 2

T2d - Double Connector, white, on rear right roof frame Overview of connector stations and pin connectors

T2e - Double Connector, yellow, on rear right roof frame Overview of connector stations and pin connectors

T4e - 4-Pin Connector, green, in rear lid, right

* - Upper right rear window

** - Lower right rear window

# - Through May 2007

Previous Diagram 30/13 (Tracks 155-168)

Next Diagram 30/15 (Tracks 183-196)
