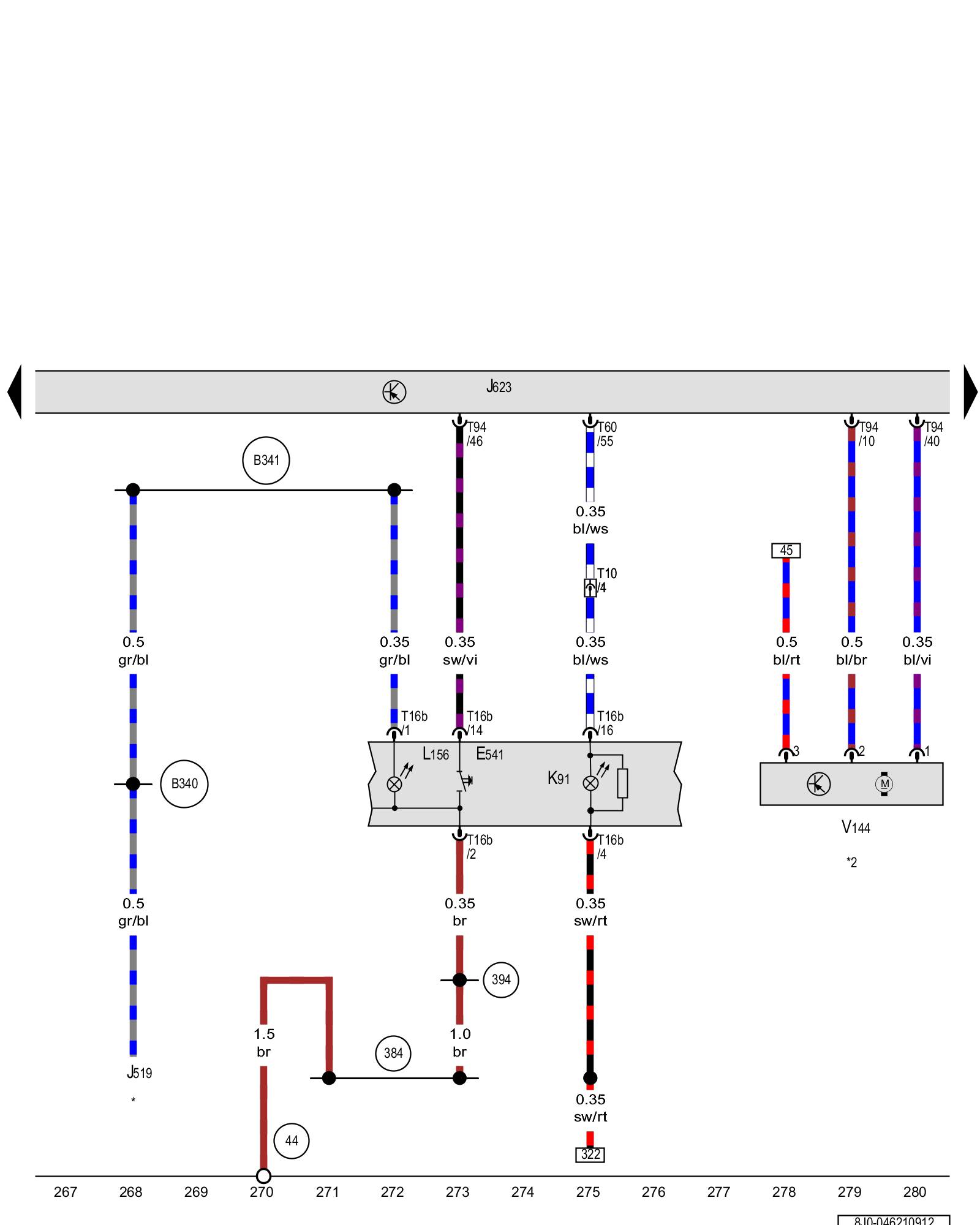

Diagram 46/21 (Tracks 267-280)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Sport program button, Engine control module, Automatic transmission sport mode indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E541 - Sport program button

J519 - Vehicle electrical system control module Component Locations

J623 - Engine control module Component Locations

K91 - Automatic transmission sport mode indicator lamp

L156 - Switch illumination bulb

T10 - 10-pin connector, in the engine compartment, left front

T16b - 16-pin connector

T60 - 60-pin connector Locations

T94 - 94-pin connector Locations

V144 - Leak detection pump Locations

(44) - Ground connection on A-pillar, lower left

(384) - Ground connection 19 (in main wiring harness)

(394) - Ground connection 29 (in main wiring harness)

(B340) - Connection 58d (in main wiring harness) 1

(B341) - Connection 58d (in main wiring harness) 2

* - Refer to applicable standard equipment wiring diagram

*2 - Only for vehicles with a fuel system diagnostic pump
