Diagram 46/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

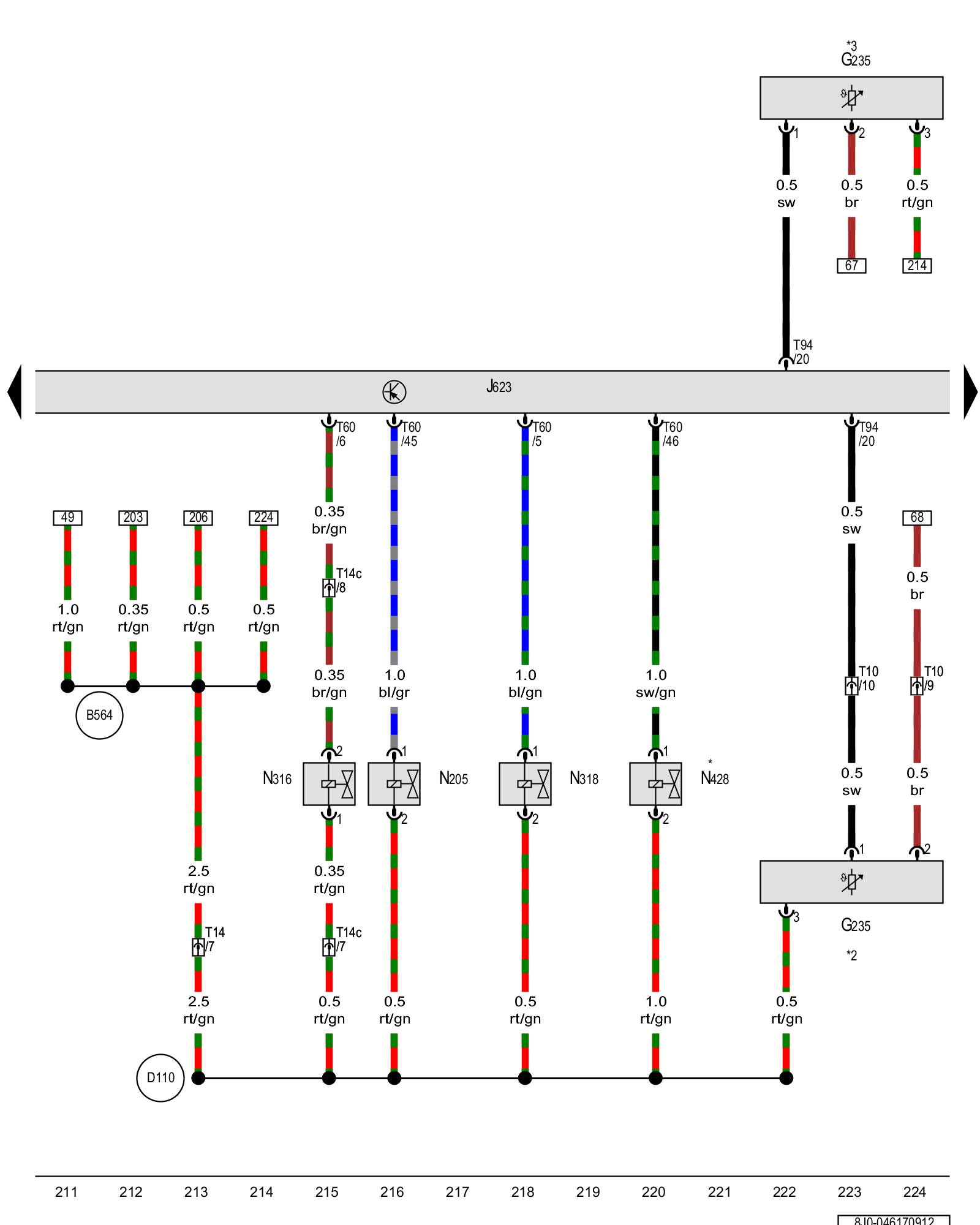

Exhaust gas temperature sensor 1, Engine control module, Camshaft adjustment valve 1, Intake manifold runner control valve, Exhaust camshaft adjustment valve 1, Oil pressure regulation valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G235 - Exhaust gas temperature sensor 1 2.5L CEPB Overviews

J623 - Engine control module Component Locations

N205 - Camshaft adjustment valve 1 Engine Management System

N316 - Intake manifold runner control valve Engine Management System

N318 - Exhaust camshaft adjustment valve 1 Engine Management System

N428 - Oil pressure regulation valve Engine Management System

T10 - 10-pin connector, in the engine compartment, left front

T14 - 14-pin connector, in the engine compartment, left front

T14c - 14-pin connector, black

T60 - 60-pin connector Locations

T94 - 94-pin connector Locations

(B564) - Connection 31 (in main wiring harness)

(D110) - Connection 8 (in engine compartment wiring harness)

* - Only for vehicles with DSG transmission

*2 - Through May 2009

*3 - from June 2009

Previous Diagram 46/16 (Tracks 197-210)

Next Diagram 46/18 (Tracks 225-238)
