Diagram 46/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

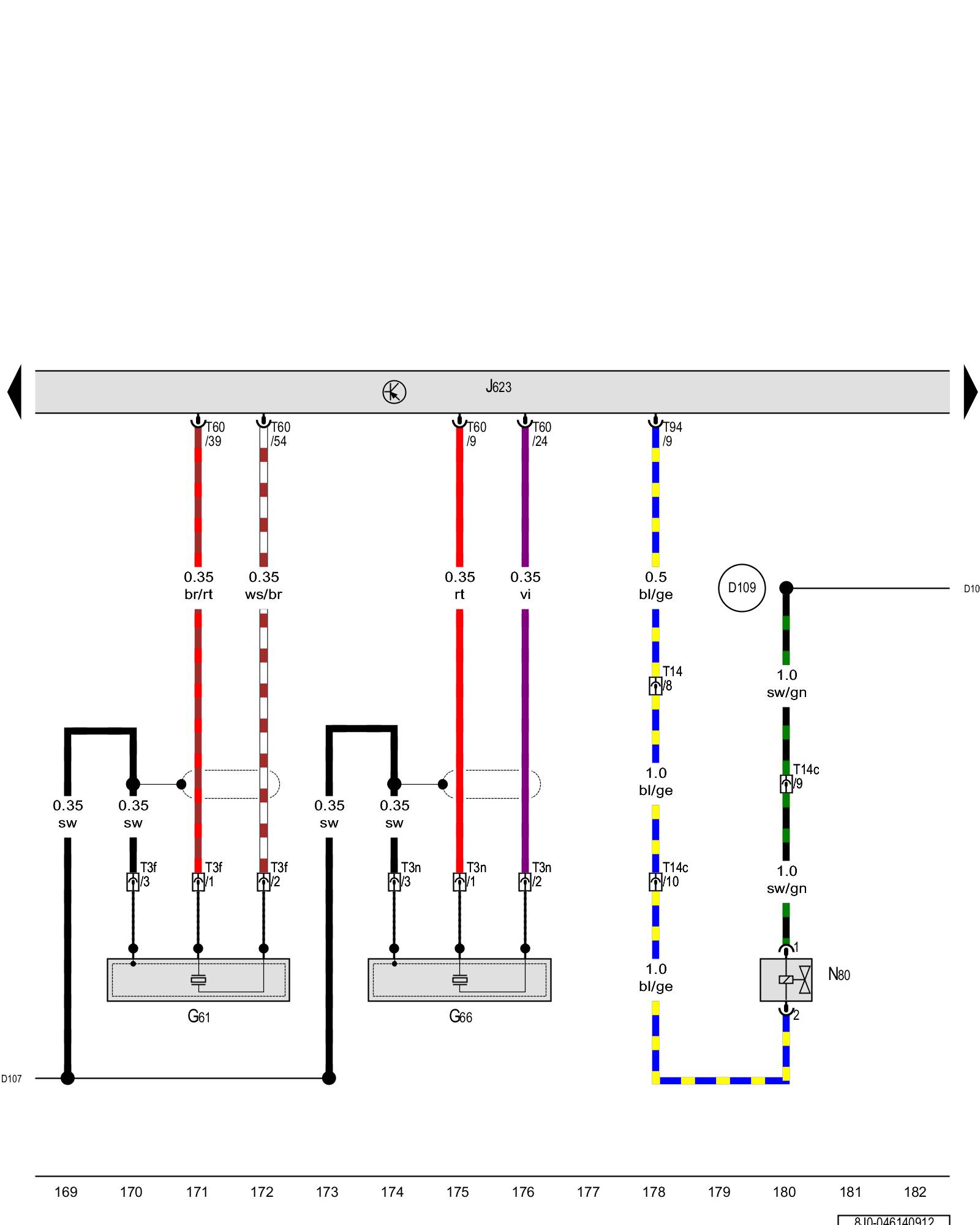

Engine control module, EVAP canister purge regulator valve 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G61 - Knock sensor 1 Engine Management System

G66 - Knock sensor 2 Engine Management System

J623 - Engine control module Component Locations

N80 - EVAP canister purge regulator valve 1 Engine Management System

T3f - 3-pin connector

T3n - 3-pin connector, gray

T14 - 14-pin connector, in the engine compartment, left front

T14c - 14-pin connector, black

T60 - 60-pin connector Locations

T94 - 94-pin connector Locations

(D107) - Connection 5 (in engine compartment wiring harness)

(D109) - Connection 7 (in engine compartment wiring harness)

Previous Diagram 46/13 (Tracks 155-168)

Next Diagram 46/15 (Tracks 183-196)
