Diagram 46/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

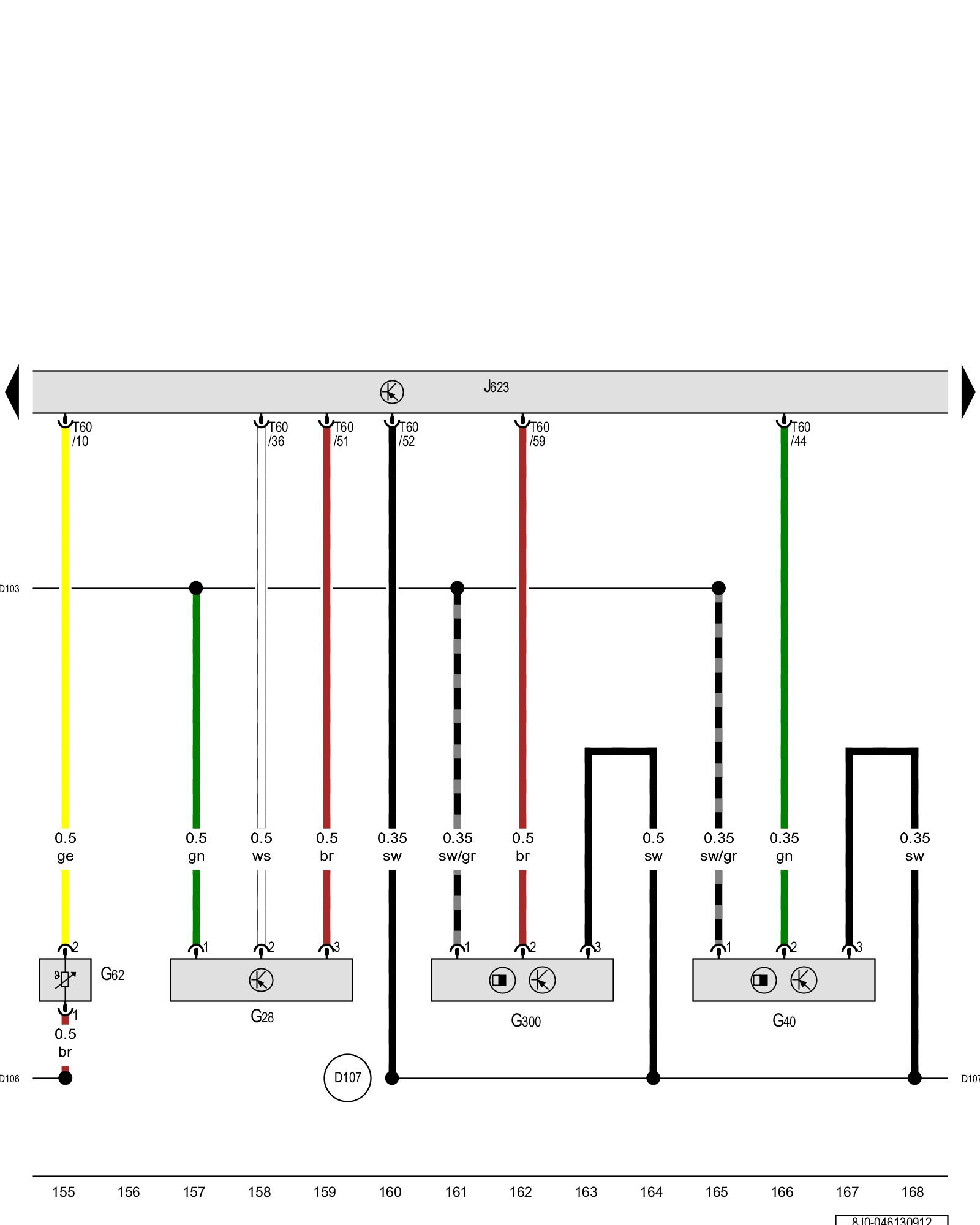

Camshaft position sensor, Engine coolant temperature sensor, Camshaft position sensor 3, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine speed sensor Engine Management System

G40 - Camshaft position sensor Engine Management System

G62 - Engine coolant temperature sensor Engine Management System

G300 - Camshaft position sensor 3 2.5L CEPB Overviews

J623 - Engine control module Component Locations

T60 - 60-pin connector Locations

(D103) - Connection 3 (in engine compartment wiring harness)

(D106) - Connection 4 (in engine compartment wiring harness)

(D107) - Connection 5 (in engine compartment wiring harness)
