Windshield Washer Spray Nozzle: Adjustments

Windshield Spray Nozzles, Adjusting

Special tools, testers and auxiliary items required

• Windshield Washer Aiming Tool (T40187) equipped with Replacement Tip (3125/5A)

Adjusting






• The settings indicate the values for a moving vehicle, for example, the spray from the jets is slightly offset when the vehicle is stationary.

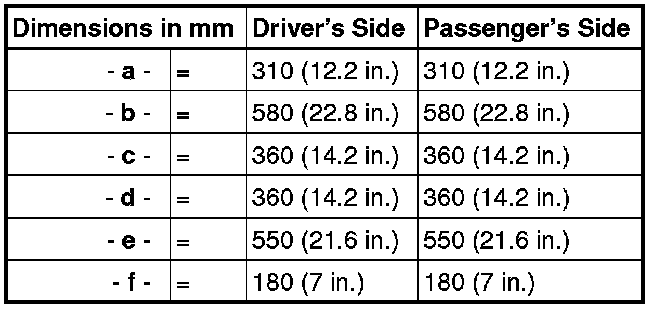

- Mark the six points on the windshield using a water soluble marker:













Risk of injury.

• If the windshield washer aiming tool (T40187) is not used, ensure that both sides are always covered and secured by covers - 3 - and - 4 -.

• If one side is not secured by the cover, injury can be caused by the needle (3125/5A) - 1 - or adjusting pin - 2 -.

• When opening each side, always ensure that the other side is not pointing toward the hand.

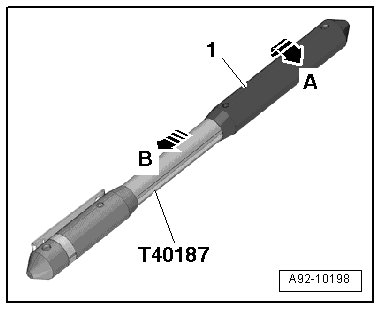

- Unlock long cover - 1 - on the windshield washer aiming tool (T40187) - arrow A - and push it back - arrow B -.

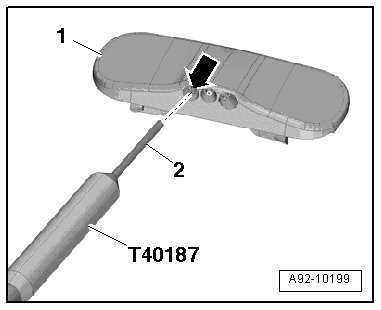

- Place adjusting pin - 2 - on the respective nozzle - arrow - of nozzle unit - 1 - and aim at the points on the windshield and adjust if necessary.






- If the spray field does not correspond to the specifications, clean dirty spray jet.

Risk of injury.

• The adjusting pin must be covered and secured by the cover after each use.

Cleaning the Nozzle

- Remove the nozzle. Refer to => [ Spray Nozzles ] Spray Nozzles.

- Flush the nozzle opposite to the spray direction using clear water.

- To remove any remaining impurities, the nozzle must only be blown out opposite to the spray direction using compressed air.

- If the spray field still does not correspond to the specifications, replace the spray nozzle.
