Windshield Washer Pump: Service and Repair

Windshield Washer Pump (V5)

Special tools, testers and auxiliary items required

• Drip tray

Removing






- Switch off the ignition and remove the ignition key.

- Remove the left front wheel.

- Remove the left front wheel housing liner.

- Disconnect the electrical connector - 4 -.

- Place a drip tray under the washer fluid reservoir.

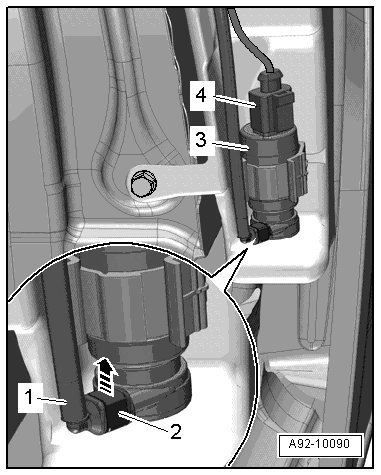

- Release the securing clip - 2 - in the - direction of the arrow - and remove the washer fluid line - 1 - from the windshield washer system washer fluid pump.

- Remove the windshield washer pump - item 3 - upward out of the washer fluid reservoir.

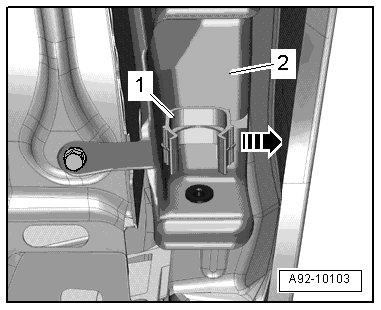

• Replace the - 1 - windshield washer pump bracket if it is damaged.






• Push the damaged bracket out of the mount in the windshield washer fluid reservoir - 2 - - arrow -.

Installing

Install in reverse order of removal, observing the following:

- Check the sealing grommet for damage.

- Install the left front wheel house liner..
