Window Regulator Motor and Window Regulator Overview

Window Regulator Motor and Window Regulator Overview

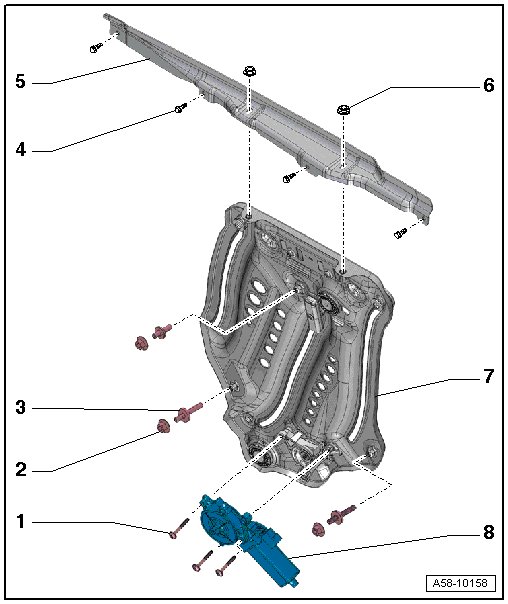

1 Bolt

• Be sure to use the correct bolt version.

• 3.5 Nm

2 Nut

• 20 Nm

3 Double Bolt

• For adjusting the window regulator.

4 Bolt

• 8 Nm

5 Mounting Piece

• For the side window

• Removing and installing. Refer to => [ Side Window Mount ] Side Window Mount.

6 Nut

• 8 Nm

7 Window Regulator

• Removing and installing. Refer to => [ Window Regulator ] Service and Repair.

8 Rear Window Regulator

• Left Rear Window Regulator Motor (V26)

• Right Rear Window Regulator Motor (V27)

• Removing and installing. Refer to => [ Left and Right Rear Window Regulator Motors ] Left and Right Rear Window Regulator Motors.

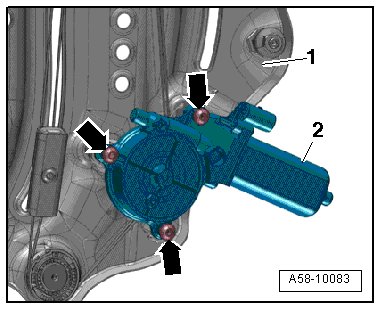

Be sure to use the correct version of the bolt for the window regulator





Danger of causing damage to the window regulator.

• Use self-tapping screws to attach the rear window regulator motor (included in the mounting kit) when replacing the window regulator.

• If a new window regulator motor is being installed, then use the standard screws (included in the mounting kit).
