Side Window Mount

Side Window Mount

Removing






- Open the rear side window.

- Remove the inner window shaft strip. Refer to => [ Inner Window Shaft Strip Trim ] Inner Window Shaft Strip Trim.

- Remove the seat belt positioning motor.

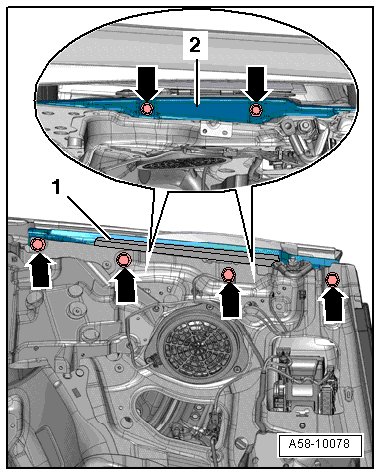

- Remove the foam piece - 1 -.

- Remove the bolts - arrows -.

- Remove the side window mount - 2 - upward.

Installation

• Tightening specifications, refer to => [ Window Regulator Motor and Window Regulator Overview ] Window Regulator Motor and Window Regulator Overview, => [ Seal Overview ] Seal Overview.

Installation is reverse of removal, but note the following:

- Install the seat belt positioning motor.

- Install the inner window shaft strip. Refer to => [ Inner Window Shaft Strip Trim ] Inner Window Shaft Strip Trim.
