Outer/Inner Window Shaft Strip

Outer/Inner Window Shaft Strip

Removing






- Open the rear side window.

- Remove rear side trim..

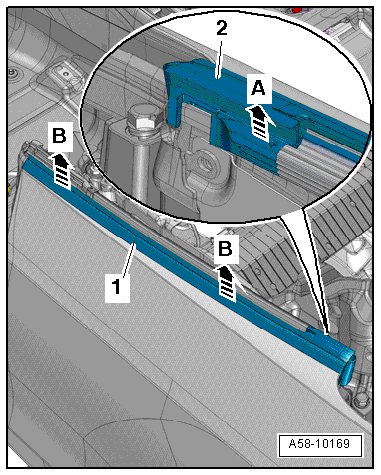

- Remove the inner window shaft strip - 2 - from the body seam - arrow A -.

- Remove the outer window shaft strip - 1 - from the body seam - arrows B -.

Installation






Installation is reverse of removal, but note the following:

• Water will get into the passenger compartment if the outer/inner window shaft strip and the convertible top compartment cover seal are not installed correctly.

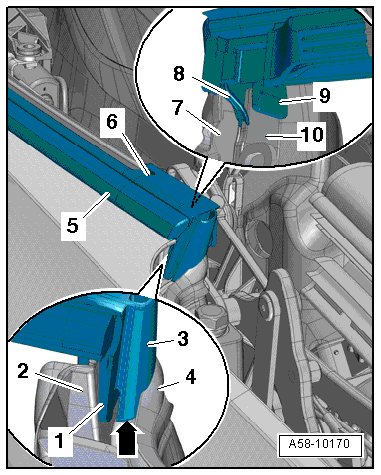

- Mount the outer window shaft strip - 5 - onto the body seam near the convertible top compartment.

• The end - 1 - of the seal must touch the outside of the convertible top compartment cover seal - 2 -.

• The water drain opening - 3 - must be in full contact with the inside of the convertible top compartment cover seal - 4 - - arrow -.

- Mount the inner window shaft strip - 6 - on the side window mount.

• The lug - 9 - on the inside of the window shaft strip must touch the outside of the window shaft strip - 10 - as illustrated.

• The water drain channel - 8 - must touch the convertible top compartment cover seal completely - 7 -.

- Install the rear side trim panel..
