Front Door Window Motor: Service and Repair

Window Regulator Motor

Removing






• The window regulator motor can be removed or installed with the motor or door window in any position.

- Remove the door trim.

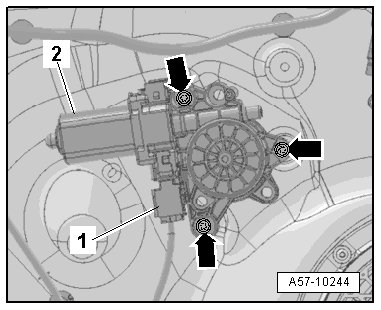

- Disconnect the electrical connector - 2 - on the door control module.

- Remove the bolts - arrows - and remove the window regulator motor - 2 - from the window regulator.

Installation






• Tightening specifications, refer to => [ Window Regulator Motor and Window Regulator Overview ] Window Regulator Motor and Window Regulator Overview.

Installation is reverse of removal, but note the following:

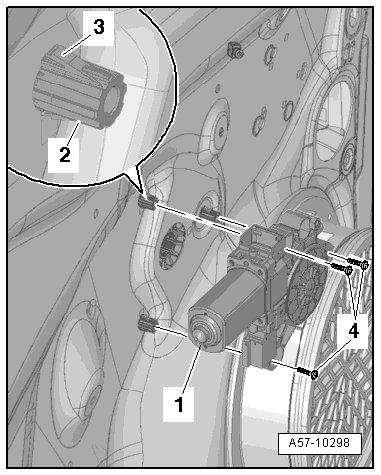

• The clips - 3 - for the window regulator motor threaded pins - 2 - must be engaged in the inner door panel.

- Slide the window regulator motor - 1 - onto the threaded pins and tighten the bolts - 4 -.

• With the window regulator motor switches connected, switch the ignition on and run the door windows up to the stop.

• Continue holding the window regulator switch for approximately 2 seconds so the basic setting and one-touch up/down function are activated.
