Center Differential Housing Overview

Center Differential Housing Overview

There is a risk of damaging the transmission.

• Do not start or tow the vehicle when the center differential is removed or when the gear oil has been drained.

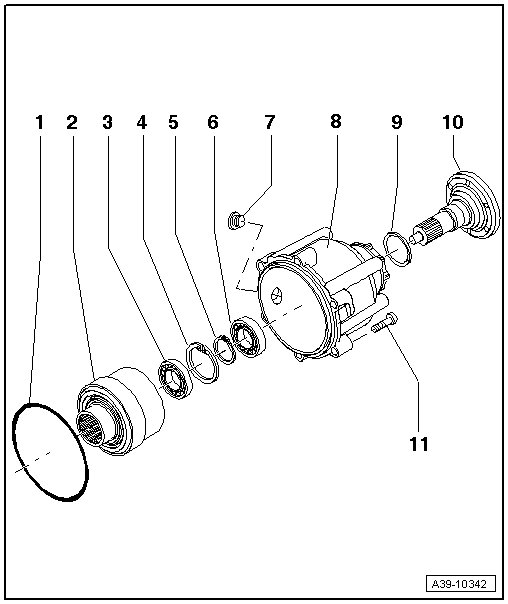

1 O-ring

• Replace

• Coat with transmission fluid

2 Center Differential

3 Ball Bearing

• For the center differential

• Refer to => [ Center Differential Ball Bearing ] Center Differential Ball Bearing

4 Locking Ring

• For the flange shaft ball bearing

5 Locking Ring

• For the flange shaft

6 Ball Bearing

• For the rear flange shaft

• => [ Rear Flange Shaft Ball Bearing ]

7 Drain Plug

• Replace

• 35 Nm

• For the oil filler hole in the center differential housing

8 Center Differential Housing

• Refer to => [ Center Differential Housing, Transmission Installed ] Center Differential Housing, Transmission Installed

9 Seal for the Rear Flange Shaft

• Refer to => [ Rear Flange Shaft Seal ]

10 Rear Flange Shaft

• Removing and installing, refer to => [ Rear Flange Shaft Seal ]

• When replacing the rear flange shaft, also replace the seal

• Allocate the components according to the Parts Catalog.

11 Bolt

• Tightening specification and sequence

• Removing and installing

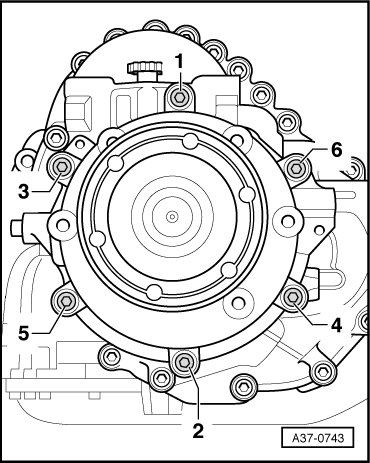

Center Differential Housing - Tightening Specification and Sequence

- Tighten the center differential housing bolts in three steps as follows:

- Pretighten the bolts - 1 - and - 2 - to 3 Nm.






- Tighten the bolts to 8 Nm in the following sequence: - 1 to 6 -.

- Tighten the bolt in the following sequence: - 1 through 6 - plus 90° additional turn.
