Flange and Driveshaft Seals, Rear Final Drive Removed
Flange and Driveshaft Seals, Rear Final Drive Removed
=> [ Flange/Driveshaft and Seal with Rear Final Drive Removed ]
=> [ Flange/Driveshaft Seal ]
• It is necessary to install the old flange/driveshaft.
• If the flange/driveshaft is also being removed. Refer to => [ Flange/Driveshaft and Seal with Rear Final Drive Removed ].
Special tools, testers and auxiliary items required
• Puller (VW 391)
• Slide Hammer - Complete Set (VW 771)
• Pulling hook (VW 771/37)
• Thrust Piece (T40112)
• Retainer (3028)
• Seal Driver-Frt Wheel Bearing (3143)
• Adapter (T10235)
• Friction Meter (VAS 6222)
• Inductive Heat Unit (VAS 6414)
• Sealing grease (G 052 128 A1)
• Locking fluid (AMV 185 101 A1)
• Three M8 x 25 bolts
• 2 bolts M10 x 40
Removing
• The flange shaft/driveshaft seal can be replaced only when the rear final drive is removed.
Observe general repair notes => [ To perform a problem-free and successful
transmission repair, extreme caution and cleanliness, as well as properly
functioning tools are an important requirement. Understandably, general safety
guidelines apply when performing repairs. ] Component Description.
- Remove rear final drive. Refer to => [ Rear Final Drive ] Rear Final Drive.
- Attach the rear final drive to the holding fixture (VW 540) using M10 x 40 bolts - arrows -.
- Measure the friction torque before loosening the pinion nuts.
- Write down this value.
If, during the repair, the flange/driveshaft must be replaced, then this measured value must be adjusted again. Refer to => [ Flange/Driveshaft and Seal with Rear Final Drive Removed ].

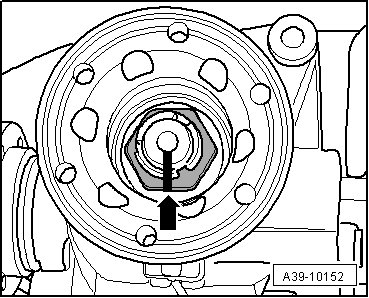

- Mark the location of the pinion nut on the pinion - arrow -.

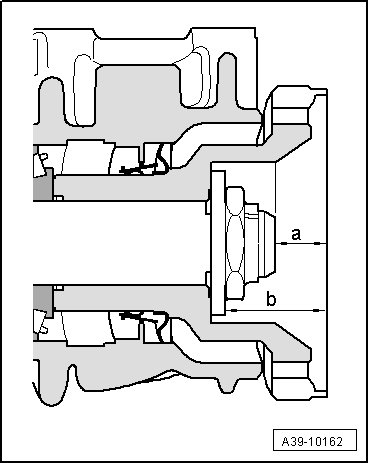

Determining Dimensions a and b
• Distance between the flange and the pinon = dimension - a -
• Distance between the flange and the pinon nut = dimension - b -
- Write down the dimensions.

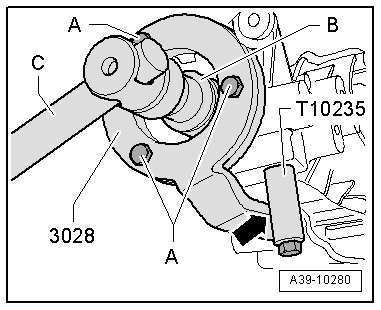

- Attach the (3028) to the flange/driveshaft with the bolts - A -.
- Attach the (T10235) in the threaded hole under the flange/driveshaft.
- Loosen the pinion nut. The (3028) will be supported by the (T10235) - arrow -.
- Count the number of turns when removing the pinion nut and write this number down.
- A - three M8 x 25 bolts
- B - 32 mm socket
- C - bar
- Mark the location of the flange/driveshaft - arrow A - to the pinion - arrow B -.
- Place the drip tray underneath.
- Install the (VW 391) with two M8 x 25 bolts - arrows -.
- Remove the flange/driveshaft.

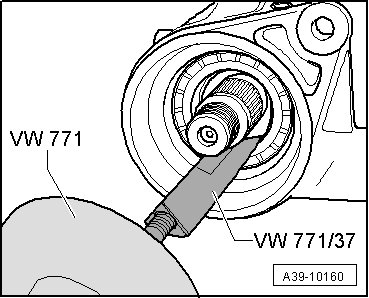

- Remove the shaft seal.
- Clean the thread on the pinion.
Installing
Installation is in reverse order of removal. Observe the following when doing so:
- Coat the outer circumference of the shaft seal with gear oil.
- Fill the space between the sealing and dust lips halfway with sealing grease (G 052 128 A1).

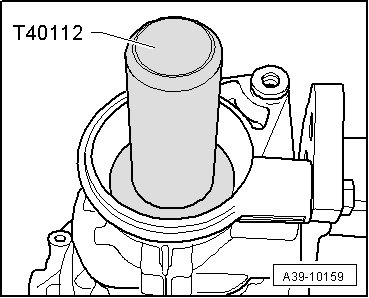

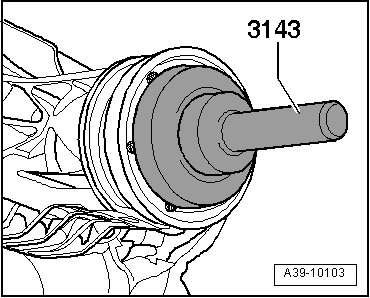

- Install the new shaft seal all the way without tilting it.
- Warm the flange/driveshaft to approximately 80 °C (176 °F) with an (VAS 6414).
- Line up the markings on the flange/driveshaft - arrow A - and pinion - arrow B -.
- Install the flange/driveshaft.
- Install the old pinion nut with locking fluid (AMV 185 101 A1).

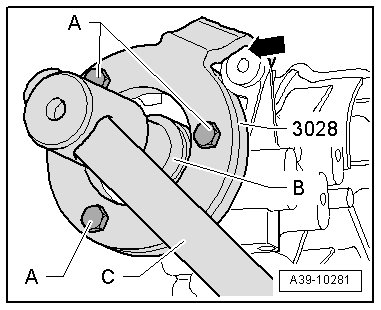

- Attach the (3028) to the flange/driveshaft with the bolts - A -.
- The (3028) must be supported by the housing brace - arrow - when tightening the pinion nut.
- A - three M8 x 25 bolts
- B - 32 mm socket
- C - bar
- Tighten the pinion the number of turns noted earlier when it was being removed at the marked location - arrow -.
Checking dimensions a and b
• Measurement deviation: ± 0.2 mm
- Install rear final drive. Refer to => [ Rear Final Drive ] Rear Final Drive.
- Check the gear oil in the rear final drive. Refer to => [ Rear Final Drive Gear Oil, Checking ] Rear Final Drive 0BD (0B2A,0B6A,0B4A,0B5A,0BKA Transmission).
Flange/Driveshaft and Seal with Rear Final Drive Removed
Special tools, testers and auxiliary items required
• Puller (VW 391)
• Slide Hammer - Complete Set (VW 771)
• Pulling hook (VW 771/37)
• Thrust Piece (T40112)
• Retainer (3028)
• Seal Driver-Frt Wheel Bearing (3143)
• Adapter (T10235)
• Friction Meter (VAS 6222)
• Inductive Heat Unit (VAS 6414)
• Sealing Grease (G 052 128 A1)
• Locking Fluid (AMV 185 101 A1)
• Three M8 x 25 bolts
• 2 bolts M10 x 40
- Follow the General Repair Instructions. Refer to => [ To perform a problem-free and successful
transmission repair, extreme caution and cleanliness, as well as properly
functioning tools are an important requirement. Understandably, general safety
guidelines apply when performing repairs. ] Component Description.
- Remove rear final drive. Refer to => [ Rear Final Drive ] Rear Final Drive.
- Attach the rear final drive to the holding fixture (VW 540) using M10 x 40 bolts - arrows -.
- Measure the friction torque before loosening the pinion nuts.
- Write down this value.
The measured value must be adjusted again after replacing the shaft seal.
- Attach the (3028) to the flange/driveshaft with the bolts - A -.
- Attach the (T10235) in the threaded hole under the flange/driveshaft.
- Loosen the pinion nut. The (3028) will be supported by the (T10235) - arrow -.
- A - three M8 x 25 bolts
- B - 32 mm socket
- C - bar
- Install the (VW 391) with two M8 x 25 bolts - arrows -.
- Remove the flange/driveshaft.
- Remove the shaft seal.
- Clean the thread on the pinion.
- Coat the outer circumference of the shaft seal with gear oil.
- Fill the space between the sealing and dust lips halfway with sealing grease (G 052 128 A1).
- Install the new shaft seal all the way without tilting it.
- Warm the flange/driveshaft to approximately 80 °C (176 °F) with an (VAS 6414).
- Install the new flange/driveshaft.
- Coat the thread on the new nut with locking fluid (AMV 185 101 A1).
- Attach the (3028) to the flange/driveshaft with the bolts - A -.
- The (3028) must be supported by the housing brace - arrow - when tightening the pinion nut.
- A - three M8 x 25 bolts
- B - 32 mm socket
- C - bar
Slowly increase the torque and read the friction torque several times. Do not exceed the friction torque measured before removal otherwise the rear final drive will have to be replaced.
- Tighten the new pinion nut just far enough until the friction torque, measured prior to removal, is reached.
- Install rear final drive. Refer to => [ Rear Final Drive ] Rear Final Drive.
- Check the gear oil in the rear final drive. Refer to => [ Rear Final Drive Gear Oil, Checking ] Rear Final Drive 0BD (0B2A,0B6A,0B4A,0B5A,0BKA Transmission).
Flange/Driveshaft Seal
Special tools, testers and auxiliary items required
• Thrust Plate (VW 402)
• Punch (VW 407)
• Thrust Disc (VW 412)
• Sleeve (40 - 20)
• - 3 - Separating Device 22 to 75 mm, for example (Kukko 17/1)
Removing the Ring from the Flange/Driveshaft
A Separating tool 22 to 115 mm, for example (Kukko 17/2)
Installing the Ring - A - onto the Flange/Driveshaft
• Installed position of the ring - A -: the indentation in the ring faces the (40 - 20).
