Rear Final Drive Identification

Rear Final Drive Identification

The rear final drive 0BD is allocated to the following transmissions:

• 6-speed manual transmission 0B2 AWD

• 6-speed manual transmission 0B4 AWD

• 7-speed S-tronic transmission 0B5 AWD

• Automatic transmission 0B6 AWD

• 8-speed automatic transmission 0BK AWD

Rear Final Drive Allocation

• => [ Engine Codes Transmission Allocations, Ratios and Capacities ] Engine Codes Transmission Allocations, Ratios and Capacities

• => [ Engine Code, Transmission Allocations, Ratios and Capacities ] Engine Code, Transmission Allocations, Ratios and Capacities

• => [ Engine Code, Transmission Allocations, Ratios and Capacities ] Engine Code, Transmission Allocations, Ratios and Capacities

• => [ Engine Code, Transmission Allocations, Ratios and Capacities ] Engine Code, Transmission Allocations, Ratios and Capacities

Classification on the Rear Final Drive

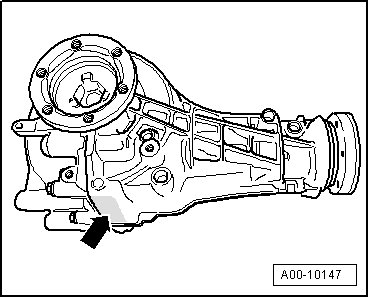

Final drive 0BD, code letters and date of manufacture - arrow -

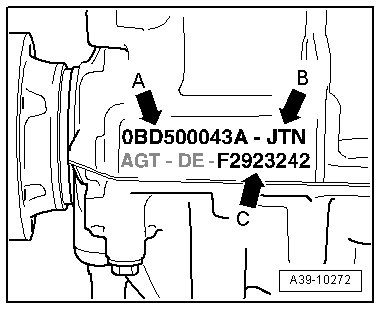

- Arrow A - Final Drive 0BD with the part number (example: 0BD 500 043A)





- Arrow B - code letters JTN

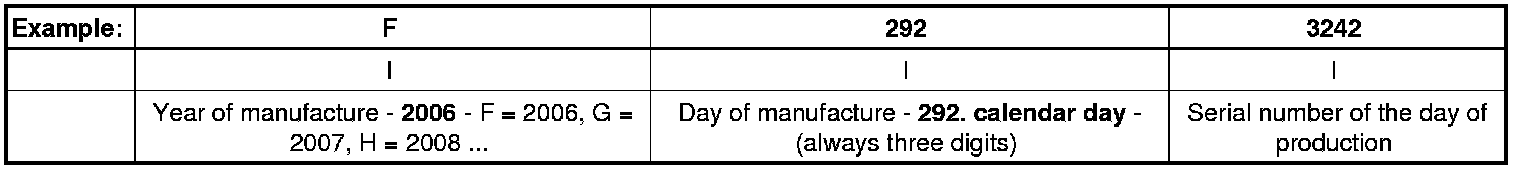

- Arrow C - rear final drive date of manufacture






The other data is not needed.

• When replacing a rear final drive, always pay close attention to the rear final drive code, the PR number and the engine code. Refer to the electronic parts catalog ETKA. This is the only way to make sure the allocation is correct.
