Final Drive, Differential - 0B5A (S-Tronic) Transmission

Special Tools






Special tools, testers and auxiliary items required

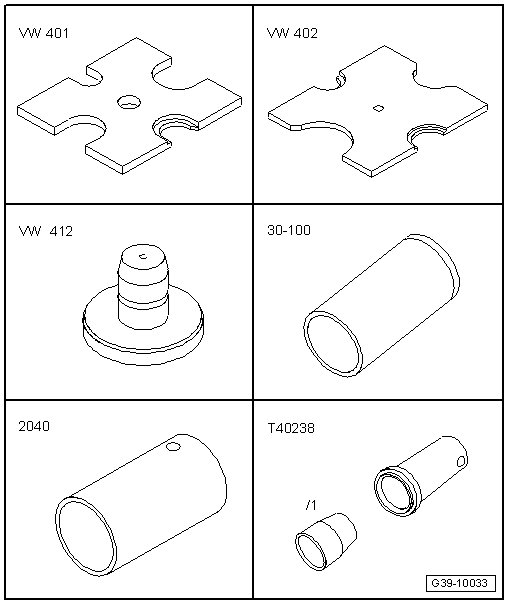

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Thrust Disc (VW 412)

• Press Tube (30 - 100)

• Press Tube (2040)

• Oil Seal Installing Tool (T40238)

• Grease, refer to the Parts Catalog






Special tools, testers and auxiliary items required

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Thrust Disc (VW 412)

• Tube 60 mm Dia. (VW 415 A)

• Press Tube (30 - 100)

• Press Tube (2040)

Special tools, testers and auxiliary items required

• Lifting Eyebolt (3368)






• Pulling Hook (T20143/2)

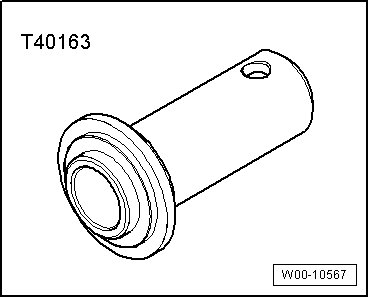

• Thrust Piece (T40163)

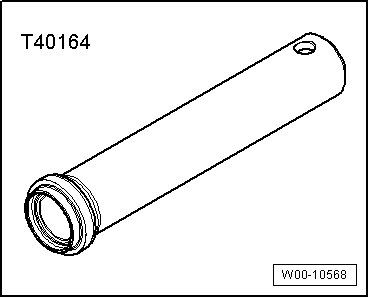

• Thrust Piece for Final Drive at Gearbox (T40164)

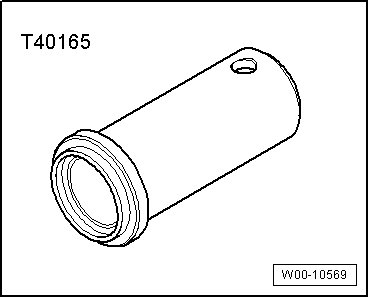

• Thrust Piece for Final Drive at Gearbox (T40165)






• Assembly Tool (T40198)






• Oil Collecting and Extracting Device (V.A.G 1782)

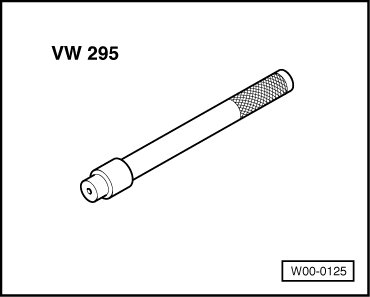

• Needle Bearing Drift (VW 295)

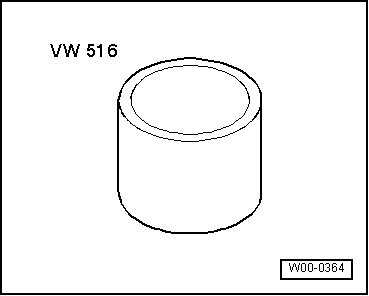

• Tube 42 mm Dia. (VW 516)

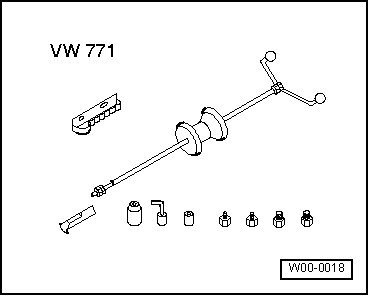

• Slide Hammer-Complete Set (VW 771)






• Not illustrated:

• Tube (T40104/2) from Removal and Assembly Tool (T40104)

• Gearbox Support (T40173)

• Guide Sleeve (T40198/1)

• Straight Edge 500 mm (VAS 6075)

• Engine and Transmission Holder (VAS 6095)

• Sleeve (VW 284/1) from Driver/Sleeve (VW 284)

• Tube 60 mm Dia. (VW 415 A)

• Thrust Tube (VW 455)
