Selector Lever Cable Overview

Selector Lever Cable Overview

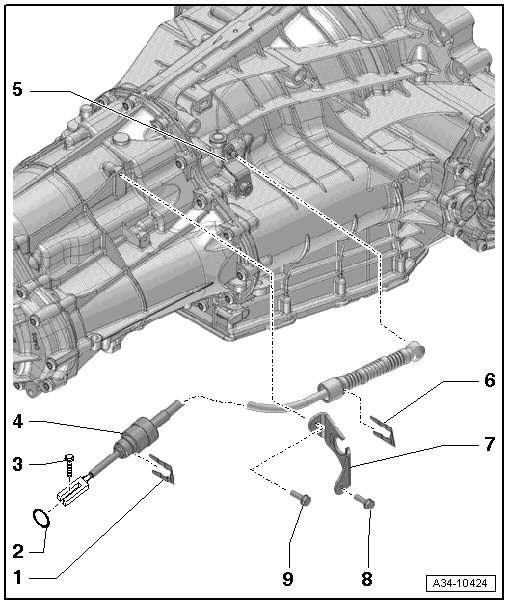

1 Clip

• For the selector lever cable on the selector mechanism function unit

2 O-ring

• Replace

3 Bolt

• 13 Nm

• For selector lever cable adjustment

• Attached to the selector mechanism function unit

4 Selector Lever Cable

• Do not bend

• Different versions depending on the vehicle; For the correct allocation, refer to the Parts Catalog

• Removing and installing, refer to => [ Selector Lever Cable ] Selector Lever Cable

• The selector lever cable must be replaced if the rubber grommet is damaged.

• Lightly lubricate ball socket with polycarbamide grease (G 052 142 A2) before installing.

• Make sure the rubber grommet on the transmission side is not twisted when installing.

• Adjusting, refer to => [ Selector Lever cable, Adjusting ] Adjustments

• Perform "Guided Functions" using the vehicle diagnostic tester after adjusting the selector lever cable. Refer to => [ Transmission Guided Functions ] Transmission Guided Functions.

5 Gearshift Lever

6 Clip

• For attaching the selector lever cable to the cable bracket

7 Cable Mounting Bracket

8 Bolt

• 8 Nm

9 Bolt

• 8 Nm
