Vibration Damper, Installing On Transmission Output Shaft With Splines

Vibration Damper, Installing on Transmission Output Shaft with Splines

Special tools, testers and auxiliary items required

• Sleeve (VW 284/1) from Driver/Sleeve (VW 284)

• Thrust Tube (VW 455)

• Tube (T40104/2) from Removal and Assembly Tool (T40104)

• Thrust Plate (VW 402)

Requirements






If the transmission output shaft with vibration damper is being replaced, it is possible the transmission output shaft - A - may be delivered separated from the vibration damper - B - if order via the Parts Catalog.

Only in this case, the vibration damper must be pressed onto the transmission output shaft with splines.

Danger of damaging the components.

• Do not remove the vibration damper from the transmission output shaft with splines and cannot be used again. Using the vibration damper again does not assure that the transmission output shaft is attached securely. The vibration damper will come loose off the transmission output shaft and damage the transmission and other components.

Procedure






- Place the (T40104/2) on the (VW 402) with the opening facing upward.

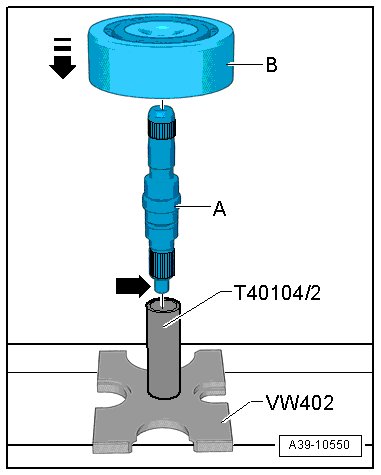

- Place the new transmission output shaft with splines - A - into the (T40104/2) with the thin guide - arrow -.

- Install the new vibration damper - B -.

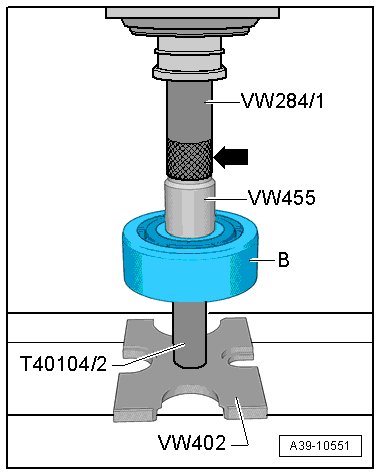

- Install the vibration damper - B - all the way on using (VW 455) and (VW 284/1).






• Tube (VW 284/1) : corrugation - arrow - faces down.
