Selector Shaft Seal

Selector Shaft Seal

Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (80 - 200)

• Thrust Piece (T10135)

Procedure






- Remove the plenum chamber bulkhead.

- Remove the front exhaust pipe/front muffler or front exhaust pipe or right front muffler.

- Remove the ball socket - 2 - on the selector lever cable from the selector shaft lever using the (80 - 200).

- Remove the clip - 1 - and remove the selector lever cable from the transmission.

• Do not bend or kink the selector lever cable.

- Remove the spring pin - 1 - on the selector shaft lever - 2 - - arrow - until it is possible to remove the lever from the shaft.













The selector shaft running surface could get damaged.

• Position the screwdriver.

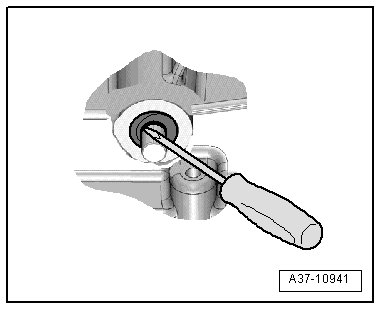

- Pierce shaft seal with a small screwdriver and pull out.

- Apply ATF to the circumference and the space between the sealing lips of the new shaft seal.

• Installed position: Open side of shaft seal faces transmission.

- Slide the shaft seal onto the selector shaft.

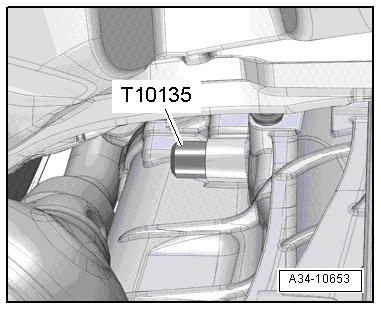

- Install the shaft seal all the way in using the (T10135). Do not tilt it while installing.






- Install the spring pin on the selector shaft lever while it is still removed.

- Slide the lever onto the selector shaft and install the spring pin.

- Install the exhaust system free of tension.

- Install the plenum chamber bulkhead.
