Fluid Line/Hose: Service and Repair

ATF Pipes

Special tools, testers and auxiliary items required

• Oil Collecting and Extracting Device (V.A.G 1782)

• Engine Bung Set (VAS 6122)

Removing






• => [ Clean Working Conditions ] Clean Working Conditions.

• The ATF pipes can only removed and installed when the transmission is removed.

• Transmission removed, refer to => [ Transmission, Removing ] Transmission, Removing.

- Place the (V.A.G 1782) under the separating point.

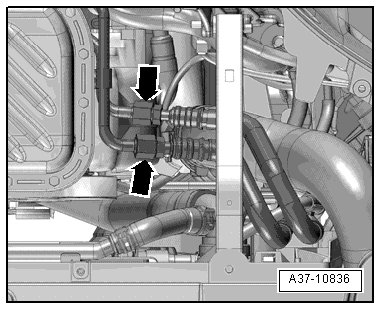

- Remove the union nuts - arrows -.

- Seal any open lines and connections with a clean plug taken from the (VAS 6122).

- Remove the ATF pipe.

Installing

Install in reverse order of removal. Note the following:

Tightening specifications:

• => [ ATF Cooler, ATF Pipes, ATF Pipe Filter Overview ] ATF Cooler, ATF Pipes, ATF Pipe Filter Overview

• => [ ATF Cooler, ATF Pipes and ATF Filter Overview ] Service and Repair

• Replace the O-rings.

There is a risk of damaging the transmission.

• When disassembling, remove all the plugs, which were taken from the (VAS 6122) from the ATF pipes and from the transmission.

• The ATF cooling function will not work and the transmission will be damaged if the plugs are forgotten.

- First insert the ATF pipes into the transmission and radiator by hand as far as the stop and then bolt them on.

- Check the ATF level after installing the transmission. Refer to => [ ATF, Checking Level and Correcting ] ATF, Checking Level and Correcting.
