Dual Input Clutch Assembly: Tools and Equipment

Special Tools

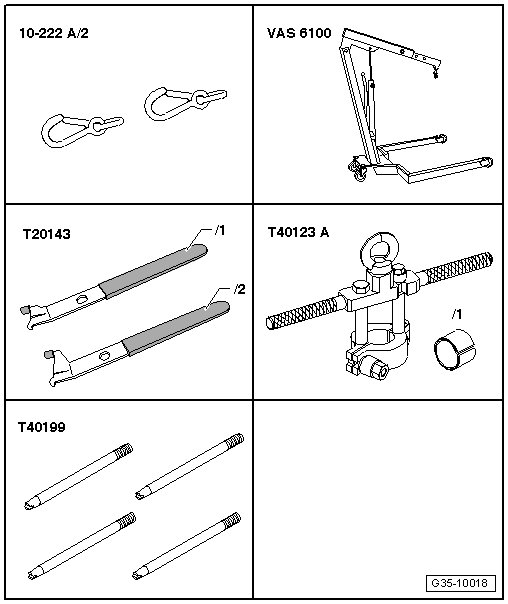

Special tools, testers and auxiliary items required

• Additional Hooks (2) (10 - 222 A /2)

• Shop Crane -Load Cap=700-1200kg (VAS 6100)

• Pulling Hook (T20143/2)

• Lifting Device (T40123 A)

• Assembly Pin (T40199)

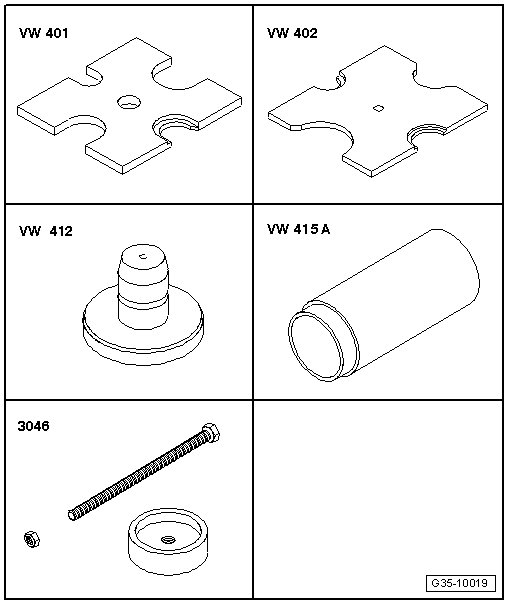

Special tools, testers and auxiliary items required

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Thrust Disc (VW 412)

• Tube 60 mm Dia. (VW 415 A)

• Puller (3046)

Special tools, testers and auxiliary items required

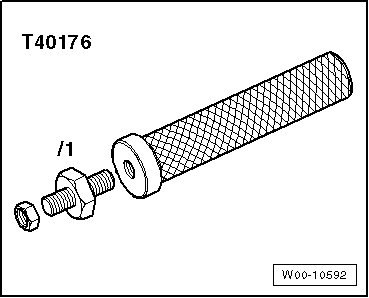

• Extractor (T40176)






• Not illustrated:

• Engine and Transmission Holder (VAS 6095)
