Automatically Shifted Manual Transmission/Transaxle: Application and ID

Transmission Identification

The "7-speed S-Tronic transmission 0B5" is installed in the Audi A4 from MY 08, the Audi A5 Cabriolet from MY 09 and the Audi A5 Coupe from MY 08. For the correct allocation, refer to => [ Code Letters, Transmission Allocations, Ratios and Equipment ] Mechanical Specifications.

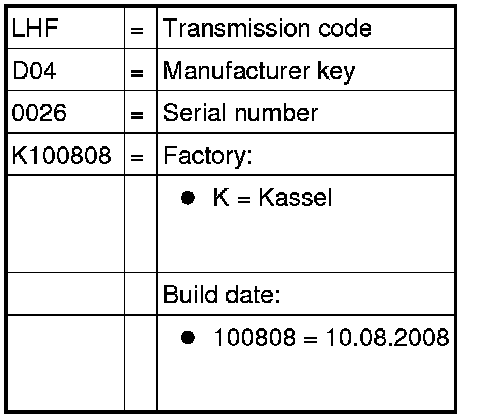

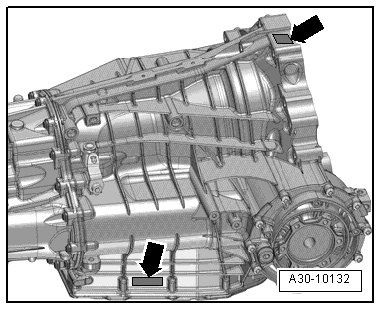

The following details can be found on the transmission housing - arrows -:






• The transmission code is also listed on the vehicle data plate.
