Left Front Body Acceleration Sensors (G341) and Right Front Body Acceleration Sensors (G342)

Left Front Body Acceleration Sensors (G341) and Right Front Body Acceleration Sensors (G342)

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1410)

Removing






- Remove the wheel.

- Remove the front wheel housing liner..

- Release and disconnect the connector - 2 -.

- Remove the nut - 1 - and sensor - 3 -.

Installing






Install in reverse order of removal. Note the following:

- When installing, always pay attention to the installation position of the sensor.

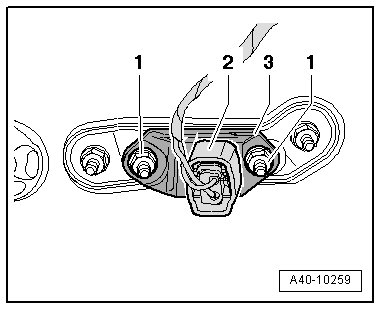

- Install the sensor as illustrated.

- Tighten the nuts - 1 - to 5 Nm.
