Front and Rear Upper Control Arm Bearing

Front and Rear Upper Control Arm Bearing

Special tools, testers and auxiliary items required

• Assembly tool (3301)

• Assembly tool (3348)

Control arms must only be clamped in a vise with protective vise jaw lining!

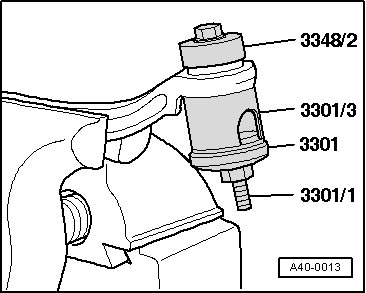

Pulling Out Bushing

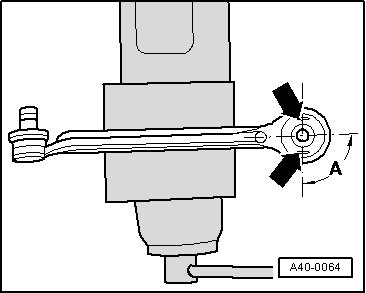

Mounting Installation Location





A = 90° +/- 5°

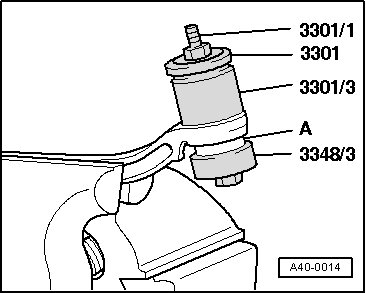

Pulling in Bushing





A = bearing

• Do not use lubricant!
