4-Cylinder TFSI
Power Steering Pump, Hydraulic Lines and Reservoir Overview, Vehicles without Dynamic Steering
• The power steering pump is not designed to be serviced. If there are customer complaints, the cause must be determined using a pressure and leak test. If there is a malfunction, replace the pump.
• If power steering fluid is low in reservoir, check steering system for leaks.
• If there are leaks in the area of the line connections, the lines/connections must first be inspected for leaks, tightened as necessary and wiped dry.
• Power steering pump is delivered without oil. Therefore, hydraulic oil must be filled before installation and turned by hand. Otherwise, noises when driving or damage to power steering pump may occur.

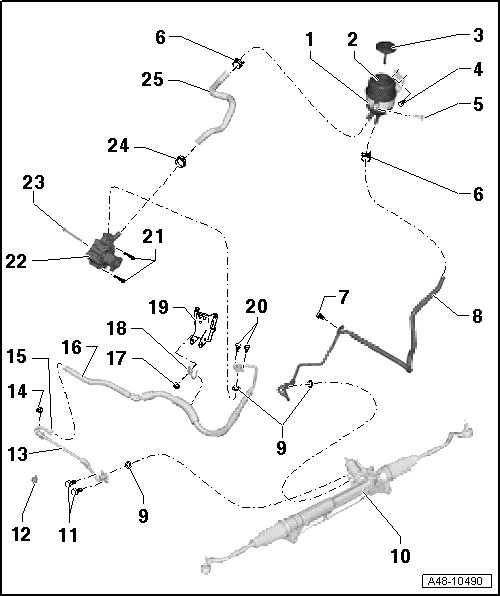

1 Tensioning Strap
• Secure to body. Refer to => [ Lines and Hoses Overview ] Lines and Hoses Overview.
2 Reservoir
• Note installed position. Refer to => [ Lines and Hoses Overview ] Lines and Hoses Overview.
• Installation position of hoses on the reservoir, refer to => [ Hose Lines to Reservoir, Hydraulic Fluid Cooler and Return Line Installed Position ] Locations.
3 Cap with Dip Stick
• Check fluid level. Refer to => [ Power Steering Fluid Level, Checking ] Power Steering Fluid Level, Checking.
4 Bolt
• 9 Nm
5 Bolt
• 9 Nm
6 Spring Clamp
• Removing and install using the hose clip pliers (V.A.G 1921).
7 Bolt
• 9 Nm
8 Return Line
• From the power steering gear to the reservoir.
• Insert the return line completely when installing.
• Mounting on the subframe, refer to => [ Lines and Hoses Overview ] Lines and Hoses Overview.
• Note location on reservoir. Refer to => [ Hose Lines to Reservoir, Hydraulic Fluid Cooler and Return Line Installed Position ] Locations.
9 Seal
• Always replace if removed.
10 Steering Gear
• Allocation, refer to the Electronic Parts Catalog (ETKA).
• Removing and installing, refer to => [ Steering Gear ] Steering Gear.
11 Bolt
• 20 Nm
12 Rubber Bushing
• 6 Nm
13 Pressurized Line
• From the power steering pump to the power steering gear; there are different versions with and without a separating point. Refer to the Electronic Parts Catalog (ETKA).
• Mounting on crossbrace, refer to => [ Lines and Hoses Overview ] Lines and Hoses Overview.
• Wiring connection installation location, refer to => [ Lines and Hoses Overview ] Lines and Hoses Overview.
• Insert the pressure line completely when installing.
14 Nut
• 6 Nm
15 Union Nut
• 40 Nm
• Wiring connection installation location, refer to => [ Lines and Hoses Overview ] Lines and Hoses Overview.
• A pressure line without a separating point does not have a union nut.
16 Pressurized Line
• From the power steering pump to the power steering gear.
• Insert the pressure line completely when installing.
• Mounting on engine mount, refer to => [ Lines and Hoses Overview ] Lines and Hoses Overview.
• Wiring connection installation location, refer to => [ Lines and Hoses Overview ] Lines and Hoses Overview.
17 Nut
• 9 Nm
18 Bracket
19 Connector
• For the engine mount.
20 Bolt
• 9 Nm
21 Bolt
• 25 Nm
22 Power Steering Pump
• Allocation, refer to the Electronic Parts Catalog (ETKA).
• Fill with hydraulic oil before installation.
• Checking delivery pressure, refer to => [ Power Steering Pump, Checking Delivery Pressure ] Testing and Inspection.
• Removing and installing, refer to => [ Power Steering Pump, Vehicles without Dynamic Steering ] Power Steering Pump, Vehicles Without Dynamic Steering.
23 Bolt
• 25 Nm
24 Clamp
• Tension using hose clamp pliers (V.A.G 1275).
• Always replace if removed.
25 Intake Hose
• Note location on reservoir. Refer to => [ Hose Lines to Reservoir, Hydraulic Fluid Cooler and Return Line Installed Position ] Locations.
• Note power steering pump location. Refer to => [ Power Steering Pump, Vehicles without Dynamic Steering ] Power Steering Pump, Vehicles Without Dynamic Steering.
