Relay /Fuse Panel F -SF- from August 2011







Relay

Relay /Fuse Panel F -SF- from August 2011

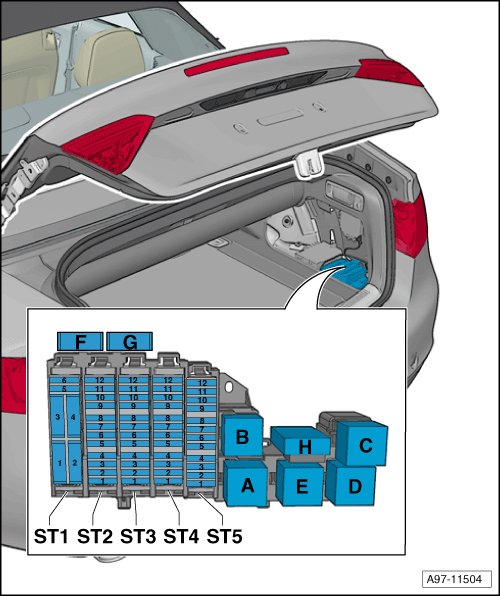

Component Location Relay /Fuse Panel F -SF- from August 2011:
In luggage compartment, behind side trim on right





A - Left Head Area Heater Relay -J911-

A - Right Head Area Heater Relay -J912-

B - Not used

C - Not used

D - Rear Window Defogger Relay -J9-

E - Sockets Relay -J807-
