Relay /fuse panel B -SB- from August 2011

Fuses

Relay /fuse panel B -SB- from August 2011


Component Location
Relay/Fuse Panel B -SB- for models with left-hand
drive, from August 2011:
In Electronics Box (in plenum chamber, driver's side)
1) Only models with cylinder 4 diesel engine
2) Only models with cylinder 6 diesel engine
3) Only models with cylinder 6 gasoline engine
4) Only models with cylinder 8 gasoline engine (only
RS 5)

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive .






K - Strip fuse for engine glow plugs -S39- , 60 A

K - Strip fuse for engine glow plugs -S39- , 80 A

K - Secondary Air Injection (AIR) Pump Fuse -S130- , 50 A

L - Secondary Air Injection (AIR) Pump Fuse 2 -S284- , 50 A

ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

Component Location
Relay/Fuse Panel B -SB- for models with right-hand
drive, from August 2011:
In Electronics Box (in plenum chamber, driver's side)
5) Only models with cylinder 4 diesel engine
6) Only models with cylinder 6 diesel engine
7) Only models with cylinder 6 gasoline engine
8) Only models with cylinder 8 gasoline engine (only
RS 5)

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive .






K - Strip fuse for engine glow plugs -S39- , 60 A

K - Strip fuse for engine glow plugs -S39- , 80 A

K - Secondary Air Injection (AIR) Pump Fuse -S130- , 50 A

L - Secondary Air Injection (AIR) Pump Fuse 2 -S284- , 50 A

ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

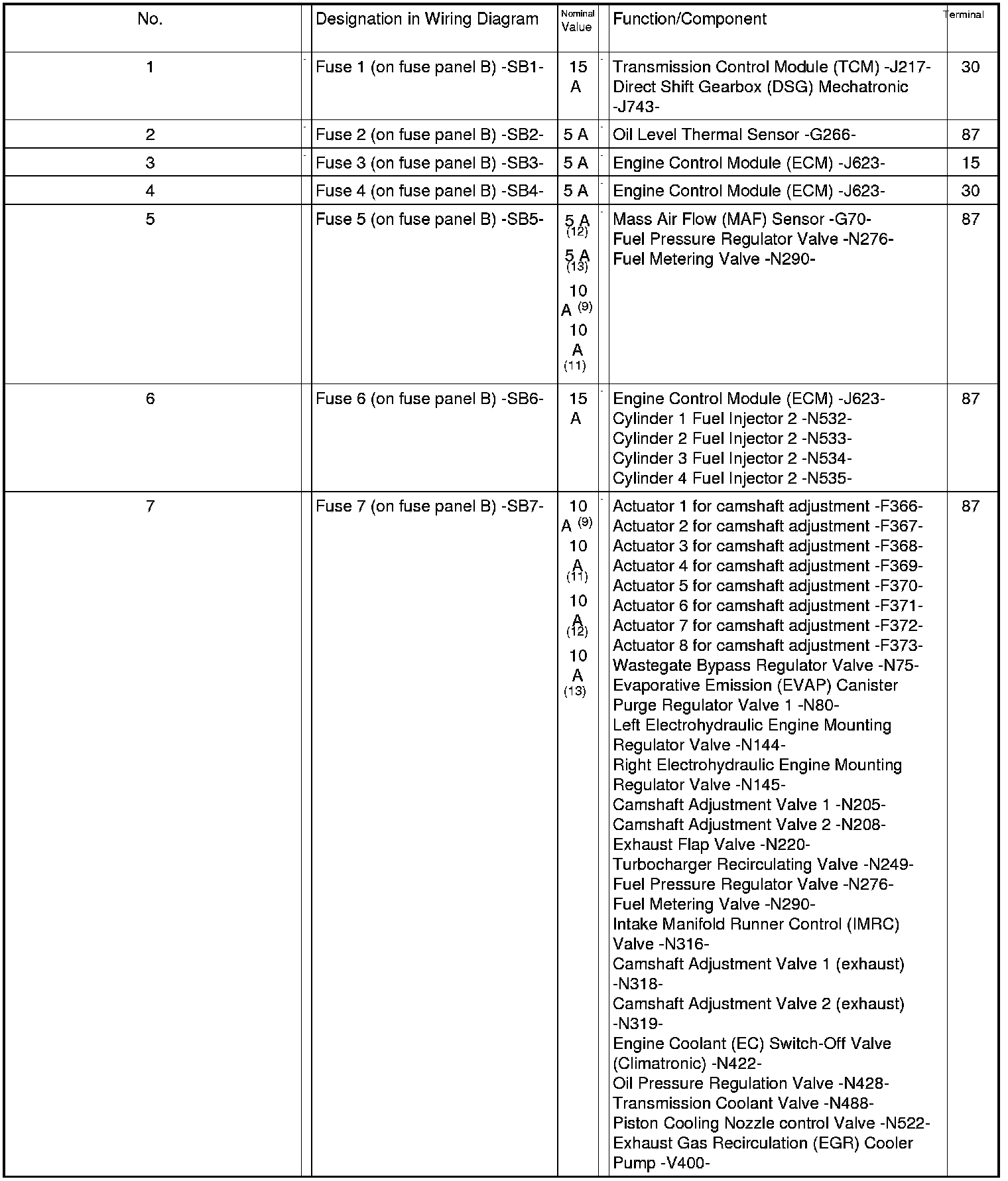

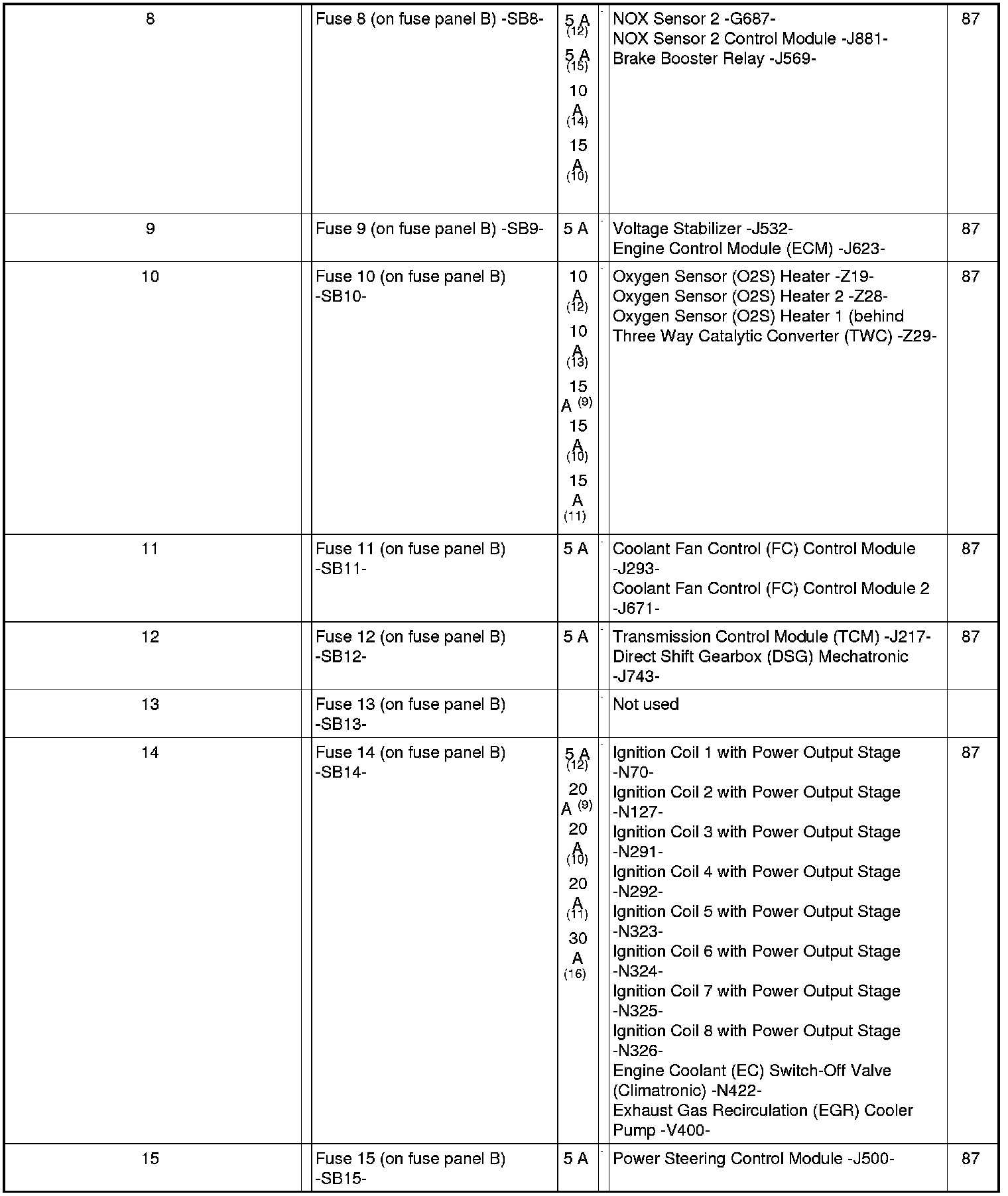

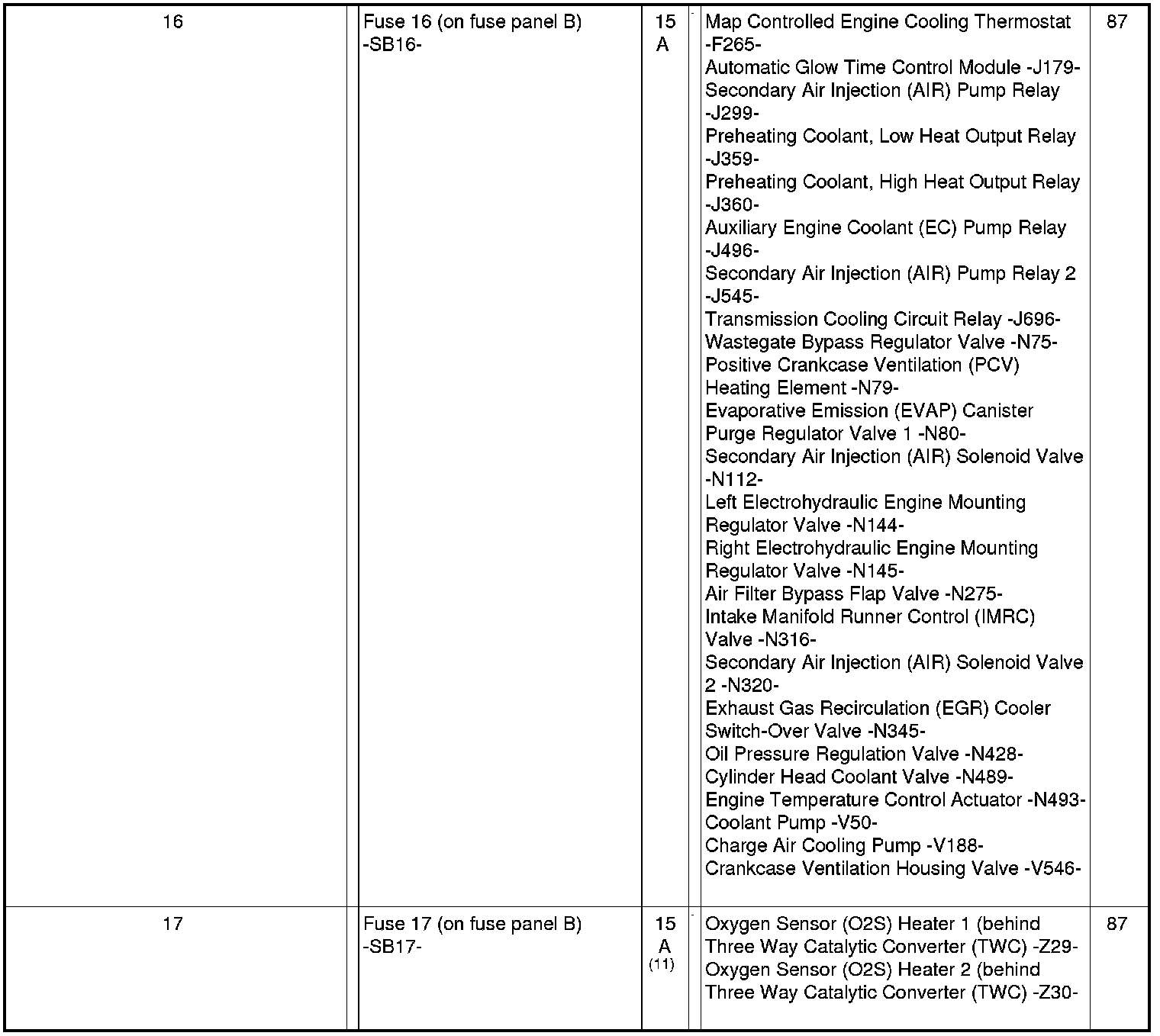

Fuses in Fuse Carrier ST1 on Fuse Panel B -SB- (black)


9) Only models with cylinder 4 gasoline engine (1.8L TFSI
Generation 2)
10) Only models with cylinder 4 gasoline engine (1.8L
TFSI Generation 3)
11) Only models with cylinder 6 gasoline engine (3.0L TFSI)
12) Only models with cylinder 4 diesel engine (2.0L TDI)
13) Only models with cylinder 6 diesel engine (3.0L TDI)
14) Only models with cylinder 6 diesel engine (3.0L TDI
BIN 5)
15) Only models with cylinder 6 diesel engine (3.0L TDI
EU 6)
16) Only models with cylinder 8 gasoline engine (only RS
5)
