Fuse Panel C -SC- from August 2011

Fuses

Fuse Panel C -SC- from August 2011

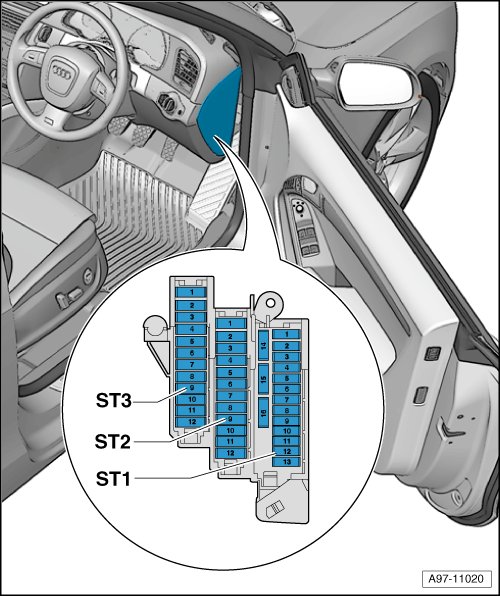

Component Location Fuse Panel C -SC- for models with left-hand drive,
from August 2011:
Below driver's instrument panel cover

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive .

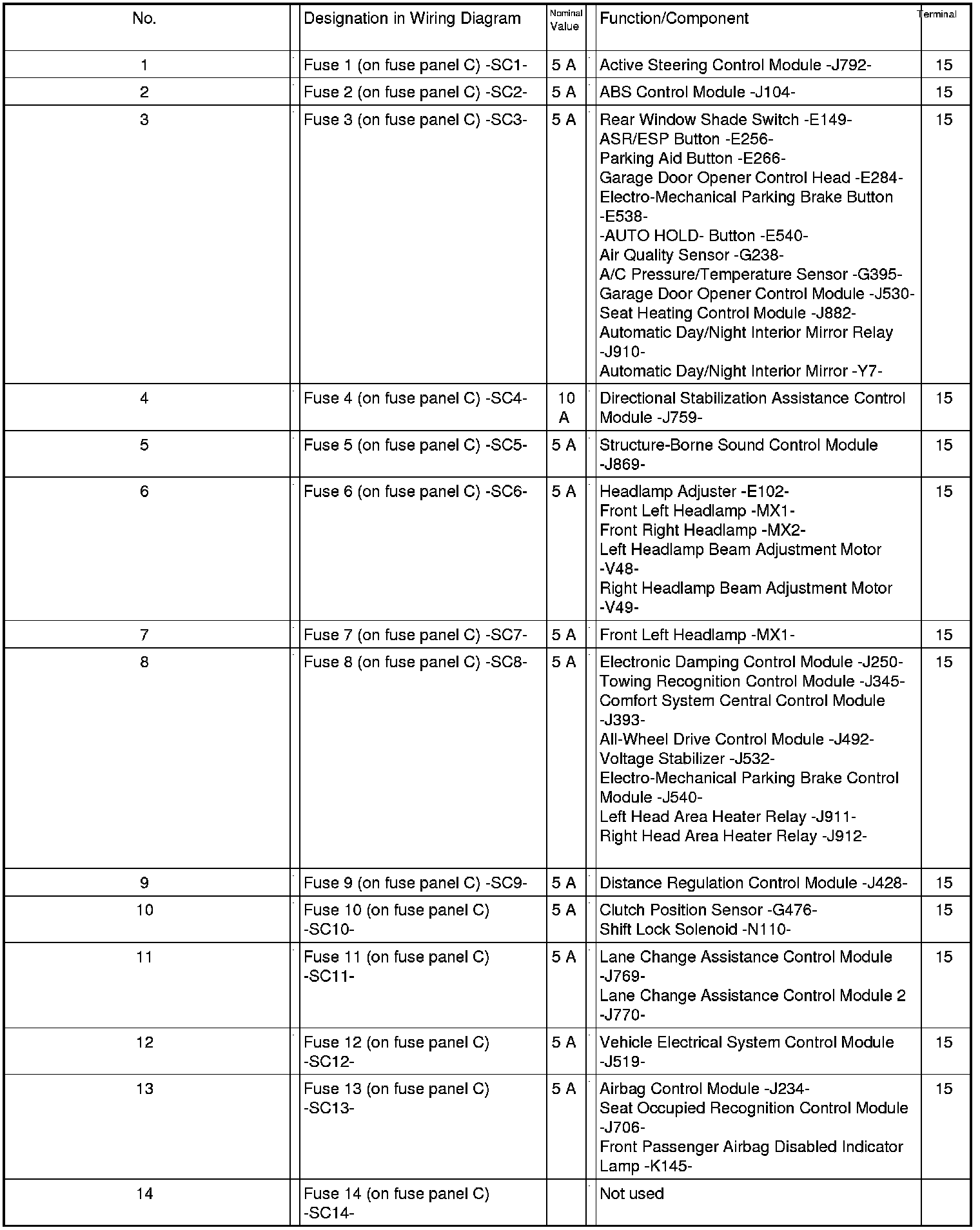

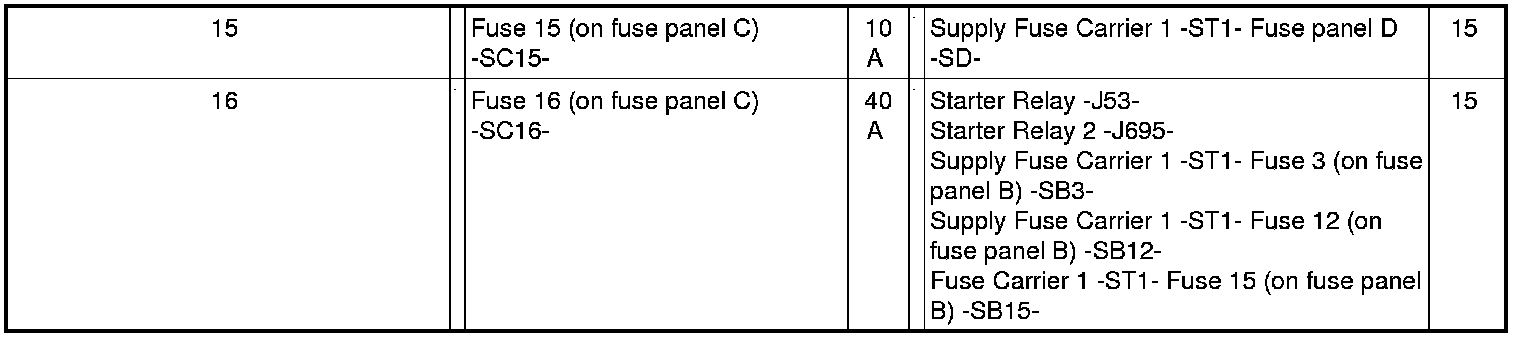

ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

ST2 - Fuse Carrier 2, Fuses => [ Fuses in Fuse Carrier ST2 on (brown) ]

ST3 - Fuse Carrier 3, Fuses => [ Fuses in Fuse Carrier ST3 (red) ]

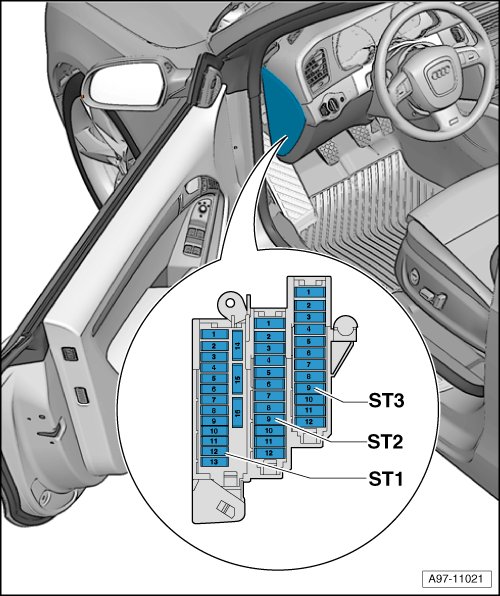

Component Location Fuse Panel C -SC- for models with right-hand drive,
from August 2011:
Below driver's instrument panel cover

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive

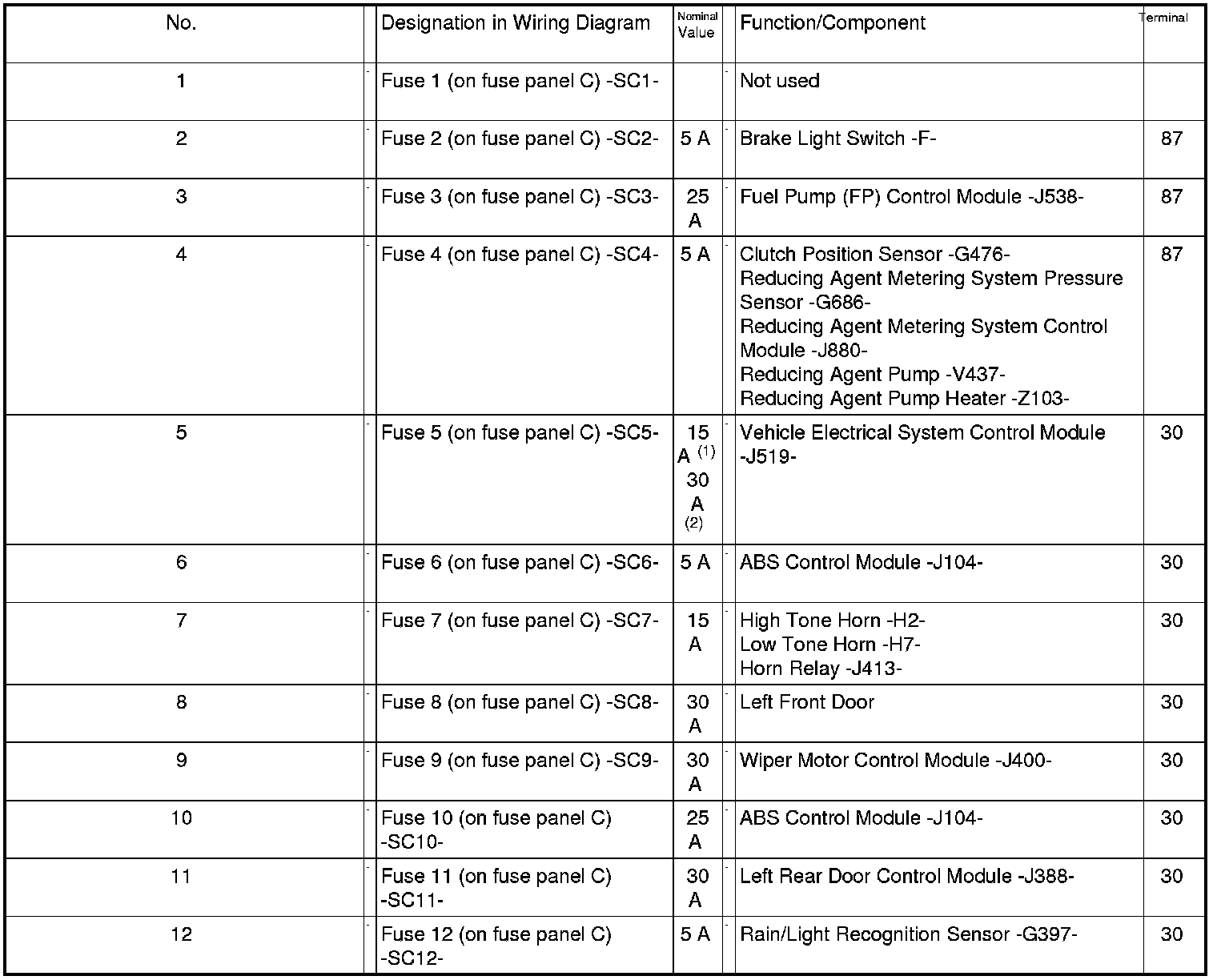

Fuses in Fuse Carrier ST2 on Fuse Panel C -SC- (brown)

1) Only models without seat ventilation
2) Only models with seat ventilation

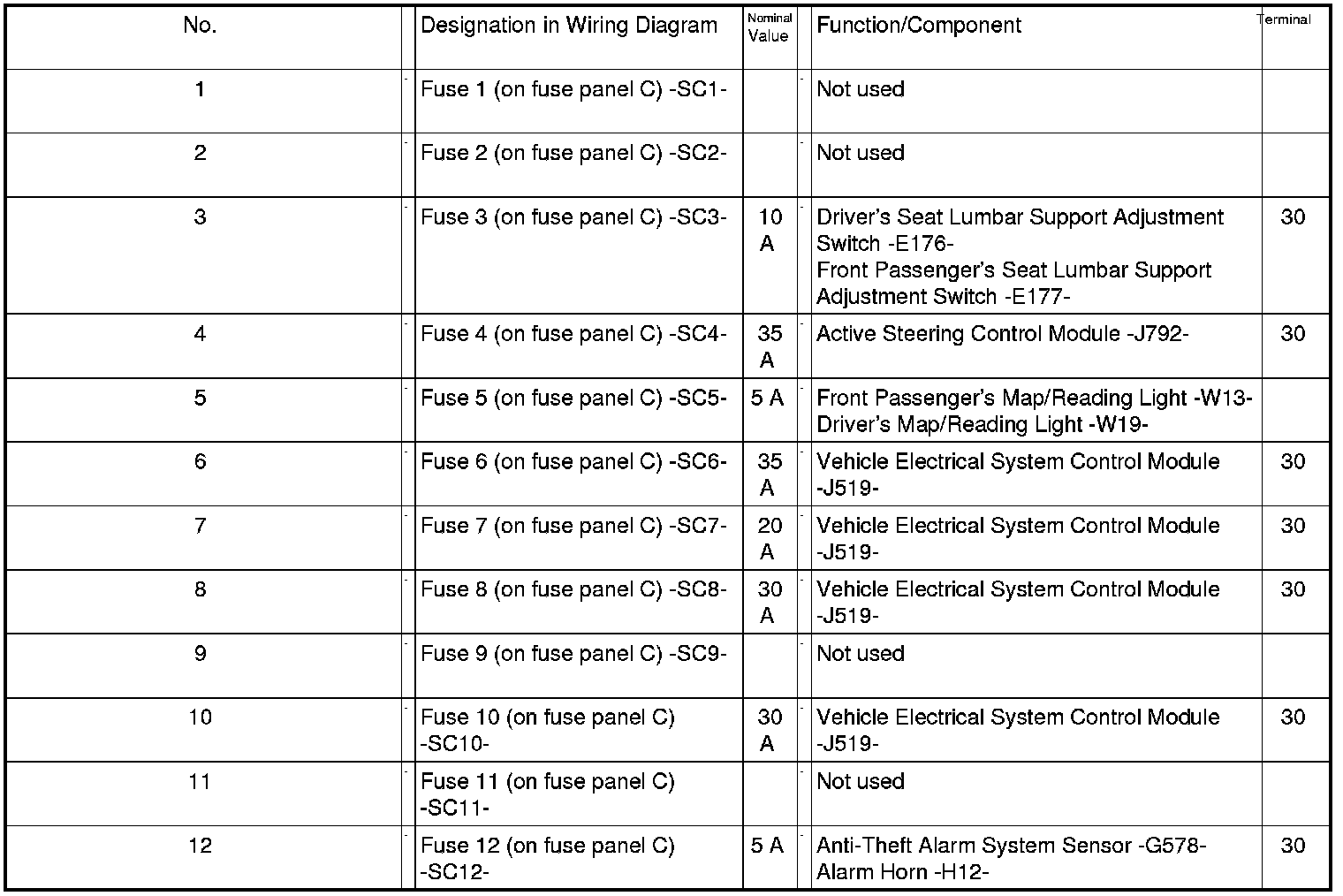

Fuses in Fuse Carrier ST3 Fuse Panel C -SC- (red)
