Fuse Panel F In Right Luggage Compartment

Fuse Panel F in Right Luggage Compartment

Removing






- With the ignition switched off, disconnect the negative battery cable. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Open the luggage compartment right side trim.

- Open the clips - 3 - in the - direction of the arrow - and press the fuse panel - 2 - back and out of the fuse panel F - 1 -.

- Remove the nut - 4 -.

- Guide fuse panel F out of the body.

- Unclip fuse panel on relay carrier.

- Remove the relay - 5 - and control modules.

- Release the retaining clips - arrows - and press the relay carrier - 2 - back and out of the bracket - 1 -.






- Open the cable ties and remove fuse panel F.

• For exact assignment of fuse panel F in right luggage compartment, refer to current wiring diagram.

Installing






• Tightening specifications, refer to => [ Fuse Panel F, Tightening Specifications ] Luggage Compartment Relay/Fuse Carrier and Control Modules Overview.

Install in reverse order of removal, observing the following:

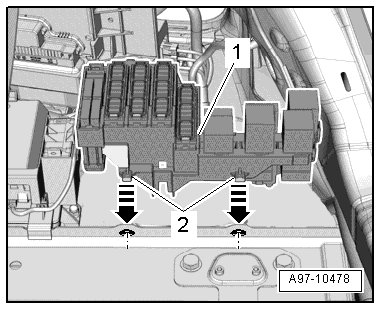

- Install fuse panel F - 1 -. Make sure the guides - 2 - fit correctly into the mount - arrows -.

- Connect the battery. Refer to => [ Connecting ] Battery, Disconnecting and Connecting.
