2.0L

Generator

Removing






- With the ignition switched off, disconnect the battery ground (GND) wire. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove the ribbed belt from the generator ribbed belt pulley and release the tension on the tensioning.

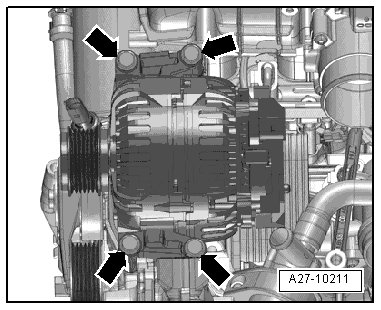

- Remove the screws - arrows - and move the generator forward.

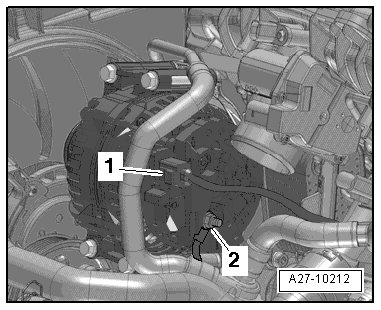

- Disconnect the electrical connector - 1 -.






- Remove terminal 30/B+ - item 2 -.

- Remove the generator.

Installing

• Tightening specifications, refer to => [ Generator Overview ] Generator Overview.

Install in reverse order of removal. Note the following:

- Install the ribbed belt.

- Connect battery. Required actions, refer to => [ Connecting ] Battery, Disconnecting and Connecting.

- Start the engine and check the ribbed belt to make sure it is working correctly.
