Battery Control Module: Locations
Control modules in interior and rear part ofvehicle
Battery Monitoring Control Module -J367-

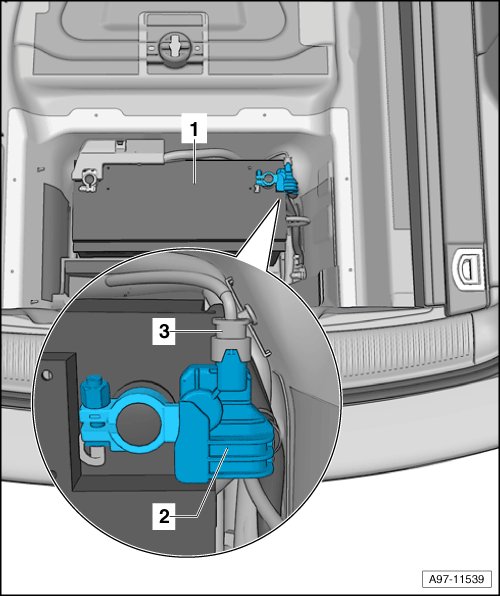

Component Location:
On negative terminal of battery -A- .
1 - Battery -A-
2 - Battery Monitoring Control Module -J367-
3 - Double Connector -T2x-
