Final Drive, Differential - 0B5A (S-Tronic) Transmission

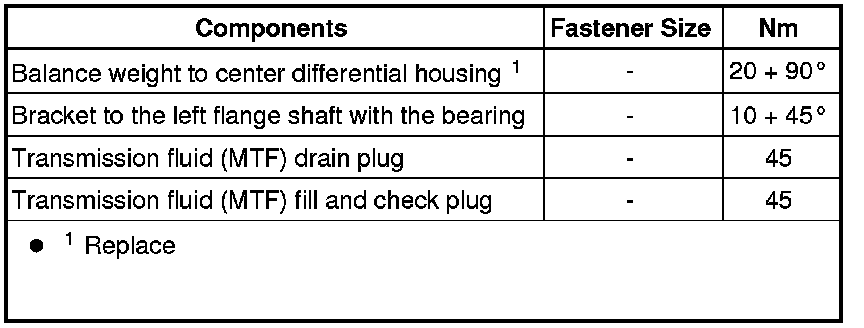

Fastener Tightening Specifications






Tightening Specification and Sequence, Front Final Drive Cover






• Replace bolts that are tightened to the specification.

- Tighten the bolts in three steps in the sequence shown:






Tightening Specification and Sequence, Center Differential Housing - Attached Driveshaft

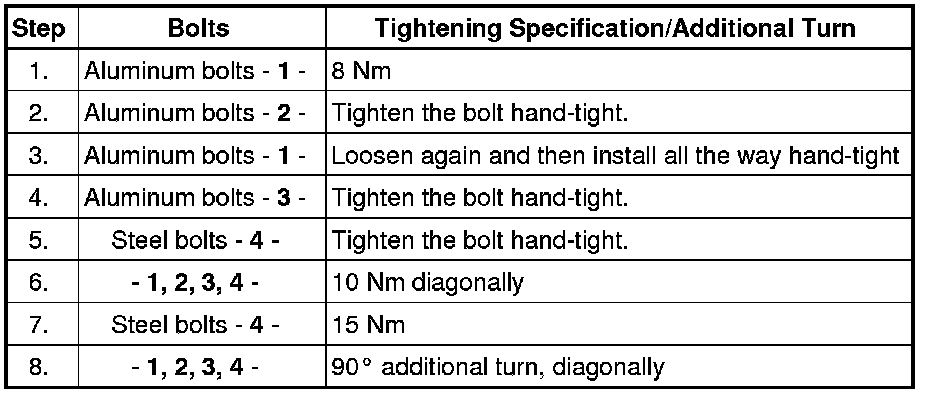

- Tighten bolts in 8 stages as follows:






Tightening Specification and Sequence, Center Differential Housing - Bolted Driveshaft






- Tighten bolts in 8 stages as follows:
