Washer Fluid Level Switch: Service and Repair

Windshield Washer Fluid Level Sensor (G33)

Special tools, testers and auxiliary items required

• Drip tray

Removing






- Switch off the ignition and remove the ignition key.

- Remove the left front wheel.

- Remove the left front wheel housing liner..

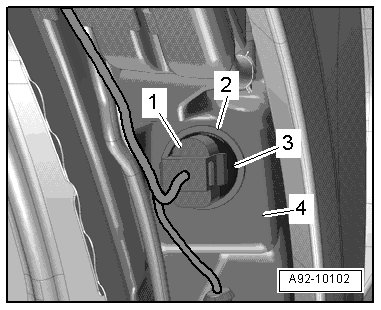

- Disconnect the electrical connector - 1 -.

- Place a drip tray under the washer fluid reservoir.

- Remove the windshield washer fluid level sensor (G33) - item 3 - from the washer fluid reservoir - 4 -.

Installing

Install in reverse order of removal, observing the following:

- Check the sealing grommet - 2 - for damage.

- Install the left front wheel house liner..
