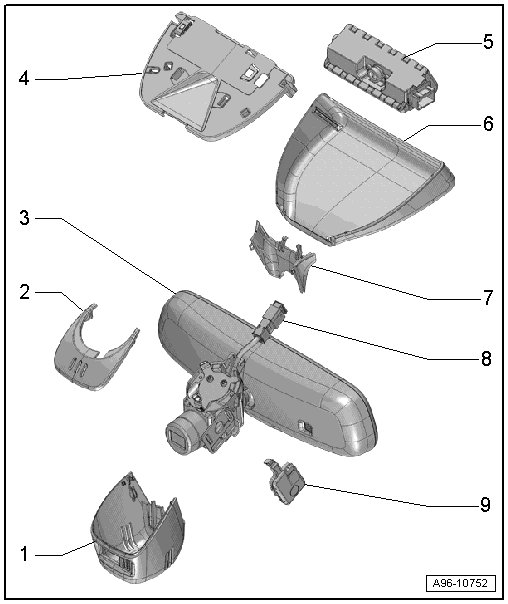

Headlamp Assistant, Humidity Sensor and Lane Assist Overview

Headlamp Assistant, Humidity Sensor and Lane Assist Overview






1 Front Cover

• For the housing for the automatic high beam control module (J844) with light recognition sensor (G399).

2 Upper Cover

• For the automatic high beam control module (J844).

3 Interior Rearview Mirror

• With automatic high beam control module (J844) with light recognition sensor (G399).

• Automatic high beam control module (J844) with light recognition sensor (G399) integrated inside the interior rearview mirror. Cannot be replaced separately if faulty.

• Interior rearview mirror, removing and installing.

4 Upper Cover

• For the directional stabilization assistance control module (J759)

5 Directional Stabilization Assistance Control Module (J759)

6 Lower Cover

• For the directional stabilization assistance control module (J759).

7 Rear Cover

8 Central Connector

9 Humidity Sensor (G355)

• Without automatic high beam, removing and installing, refer to => [ Humidity Sensor (G355), without Headlamp Assistant ] Humidity Sensor (G355), Without Headlamp Assistant.

• With automatic high beam, removing and installing, refer to => [ Humidity Sensor (G355), with Headlamp Assistant ] Humidity Sensor (G355), With Headlamp Assistant.
