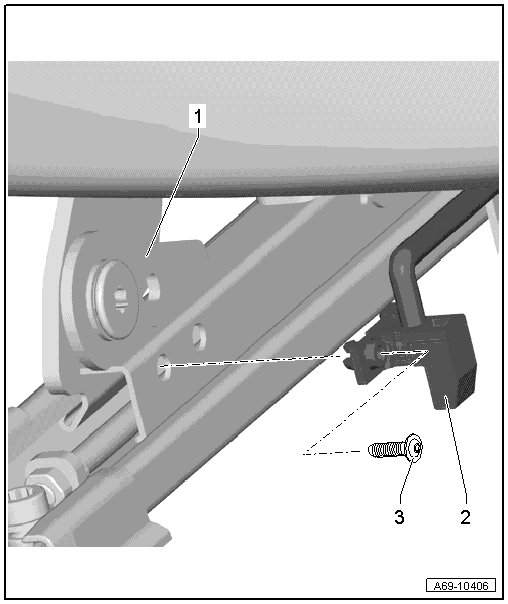

Seat Position Sensor Assembly Overview

Seat Position Sensor Assembly Overview

• The seat position sensor is the same in all seat versions.






1 Seat Pan Lower Frame

2 Seat Position Sensor

• Diver side: driver seat position sensor (G553)

• Front passenger side: front passenger seat position sensor (G554)

• Versions with seat occupied sensor for belt fastening detection, removing and installing, refer to => [ Seat Position Sensor with Seat Occupied Sensor for Belt Fastening Detection ] Seat Position Sensor With Seat Occupied Sensor For Belt Fastening Detection

• Versions with seat occupied sensor for passenger airbag deactivation, removing and installing, refer to => [ Seat Position Sensor with Seat Occupied Sensor for Passenger Airbag Deactivation ] Seat Position Sensor With Seat Occupied Sensor For Passenger Airbag Deactivation

3 Bolt

• 0.3 Nm
