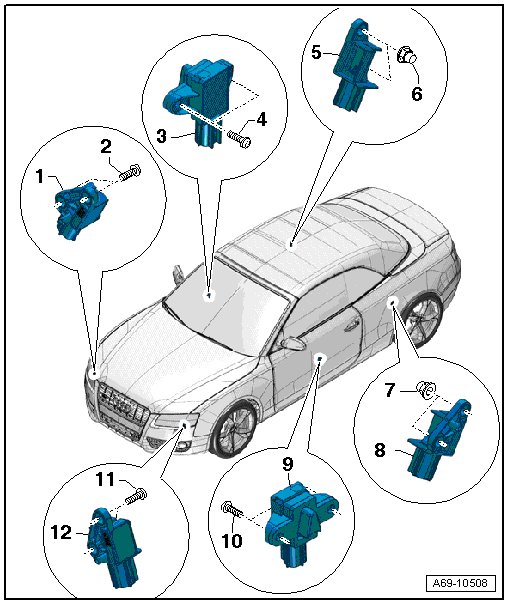

Airbag Crash Sensors Overview

Airbag Crash Sensors Overview






1 Passenger Front Airbag Crash Sensor (G284)

• Installed location: on the headlamp housing bracket

• Removing and installing, refer to => [ Front Airbag Crash Sensor ] Front Airbag Crash Sensor

2 Bolt

• 9 Nm

• Quantity: 2

3 Passenger-Side Side Airbag Crash Sensor (G180)

• Installed location: inside the door

• Safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to => [ Front Side Airbag Crash Sensors Safety Precautions ] Front Side Airbag Crash Sensors Safety Precautions

• Removing and installing, refer to => [ Side Airbag Crash Sensor ] Side Airbag Crash Sensor

4 Bolt

• 5 Nm

• Quantity: 2

5 Right Rear Side Airbag Crash Sensor (G257)

• Installed location: on the inside of the wheel housing behind the side trim panel

• Removing and installing, refer to => [ Rear Side Airbag Crash Sensor ] Rear Side Airbag Crash Sensor

6 Nut

• 9 Nm

• Quantity: 2

7 Nut

• 9 Nm

• Quantity: 2

8 Rear Side Airbag Crash Sensor (driver side) (G256)

• Installed location: on the inside of the wheel housing behind the side trim panel

• Removing and installing, refer to => [ Rear Side Airbag Crash Sensor ] Rear Side Airbag Crash Sensor

9 Driver Side Airbag Crash Sensor (G179)

• Installed location: inside the door

• Safety precautions for working with front side airbag crash sensors (pressure sensors) => [ Front Side Airbag Crash Sensors Safety Precautions ] Front Side Airbag Crash Sensors Safety Precautions

• Removing and installing, refer to => [ Side Airbag Crash Sensor ] Side Airbag Crash Sensor

10 Bolt

• 5 Nm

• Quantity: 2

11 Bolt

• 9 Nm

• Quantity: 2

12 Driver Front Airbag Crash Sensor (G283)

• Installed location: on the headlamp housing bracket

• Removing and installing, refer to => [ Front Airbag Crash Sensor ] Front Airbag Crash Sensor
